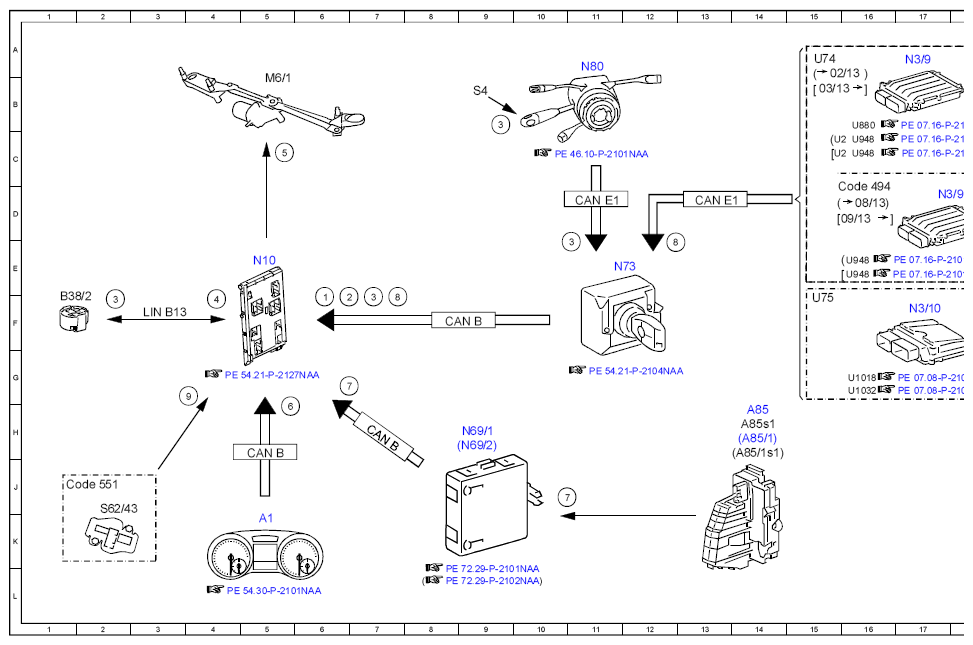

Electrical Function Schematic For Windshield Wiper - PE82.30-P-2051-97NAA
MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6F |
| 2 | Circuit 50, status | 6F |
| 3 | Combination switch, status | 2E |
| 3 | Combination switch, status | 9B |
| 3 | Combination switch, status | 11D |
| 3 | Combination switch, status | 7E |
| 4 | Rain/light sensor, status | 4F |
| 5 | Wiper motor, actuation | 6C |
| 6 | Vehicle speed, signal | 5H |
| 7 | Door rotary tumbler switch, status | 6G |
| 7 | Door rotary tumbler switch, status | 10J |
| 8 | Gear range, status | 12D |
| 8 | Gear range, status | 7F |
| 8 | Gear range, status | 19C |
| 9 | Engine hood contact switch, status | 3G |
| A1 | Instrument cluster | 5K |
| A85 | Left front door lock | 14H |
| A85/1 | Right front door lock | 14H |
| A85/1s1 | Right front door pre-locking position microswitch | 14H |
| A85s1 | Left front door pre-locking position microswitch | 14H |
| B38/2 | Rain/light sensor | 1F |
| CAN B | Interior CAN | 7H |
| CAN B | Interior CAN | 8F |
| CAN B | Interior CAN | 5H |
| CAN C | Drive train CAN | 20D |
| CAN E1 | Chassis CAN 1 | 11D |
| CAN E1 | Chassis CAN 1 | 13D |
| Code 494 | USA version | 15D |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 1J |
| LIN B13 | Roof LIN | 3F |
| M6/1 | Wiper motor | 5B |
| N10 | SAM control unit | 5E |
| N3/10 | ME-SFI [ME] control unit | 17F |
| N3/9 | CDI control unit | 17A |
| N3/9 | CDI control unit | 17D |
| N69/1 | Left front door control unit | 9H |
| N69/2 | Right front door control unit | 9H |
| N73 | Electronic ignition switch control unit | 11E |
| N80 | Steering column module control unit | 11A |
| S4 | Combination switch | 9B |
| S62/43 | Left engine hood contact switch | 2J |
| U1018 | Valid for gasoline engine 276 | 16G |
| U1032 | Valid for engine 278 and 157 | 16G |
| U2 | Valid for all except USA | 15C |
| U2 | Valid for all except USA | 15C |
| U74 | Valid for diesel engines | 15A |
| U75 | Valid for gasoline engines | 15F |
| U880 | Valid for engine 642 | 16B |
| U948 | Valid for diesel engine 651 | 16C |
| U948 | Valid for diesel engine 651 | 16C |
| U948 | Valid for diesel engine 651 | 16E |
| U948 | Valid for diesel engine 651 | 16E |
| Y3/8n4 | Fully integrated transmission control unit | 22C |
