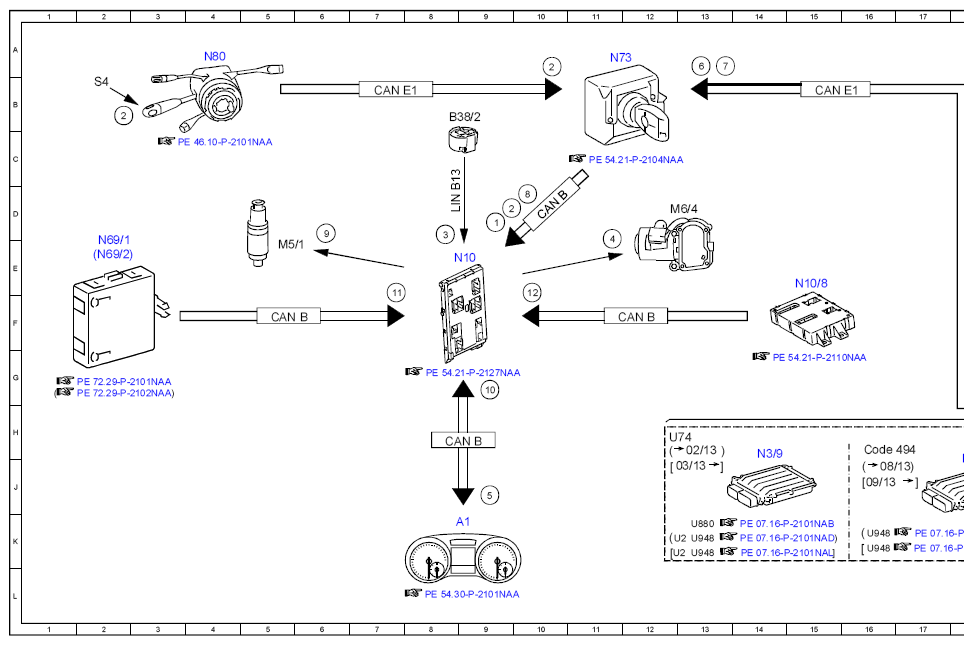

Electrical Function Schematic For Rear Window Wiper System - PE82.30-P-2056-97NAA
MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 9D |
| 10 | Vehicle speed, signal | 9G |
| 11 | Door rotary tumbler switch, status | 7E |
| 12 | Tailgate rotary tumbler switch, status | 10E |
| 2 | Combination switch, status | 10A |
| 2 | Combination switch, status | 9D |
| 2 | Combination switch, status | 3B |
| 3 | Rain/light sensor, status | 8D |
| 4 | Tailgate wiper motor, actuation | 11D |
| 5 | Visual feedback, request | 9J |
| 6 | Selector lever position, status | 13A |
| 6 | Selector lever position, status | 19G |
| 7 | Gear range, status | 13A |
| 7 | Gear range, status | 19G |
| 8 | Reverse gear, status | 10D |
| 9 | Windshield washer system pump, actuation | 6D |
| A1 | Instrument cluster | 9K |
| B38/2 | Rain/light sensor | 8B |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 10D |
| CAN B | Interior CAN | 8H |
| CAN C | Drive train CAN | 20E |
| CAN E1 | Chassis CAN 1 | 15B |
| CAN E1 | Chassis CAN 1 | 7B |
| Code 494 | USA version | 16H |
| LIN B13 | Roof LIN | 8D |
| M5/1 | Windshield washer system pump | 5E |
| M6/4 | Tailgate wiper motor | 13D |
| N10 | SAM control unit | 9E |
| N10/8 | Rear control unit | 15E |
| N3/10 | ME-SFI [ME] control unit | 20H |
| N3/9 | CDI control unit | 14H |
| N3/9 | CDI control unit | 18J |
| N69/1 | Left front door control unit | 2E |
| N69/2 | Right front door control unit | 2E |
| N73 | Electronic ignition switch control unit | 11A |
| N80 | Steering column module control unit | 4A |
| S4 | Combination switch | 2B |
| U1018 | Valid for gasoline engine 276 | 19K |
| U1032 | Valid for engine 278 and 157 | 19K |
| U2 | Valid for all except USA | 12K |
| U2 | Valid for all except USA | 12K |
| U74 | Valid for diesel engines | 12H |
| U75 | Valid for gasoline engines | 19H |
| U880 | Valid for engine 642 | 13K |
| U948 | Valid for diesel engine 651 | 13K |
| U948 | Valid for diesel engine 651 | 13K |
| U948 | Valid for diesel engine 651 | 16K |
| U948 | Valid for diesel engine 651 | 16K |
| Y3/8n4 | Fully integrated transmission control unit | 22D |
