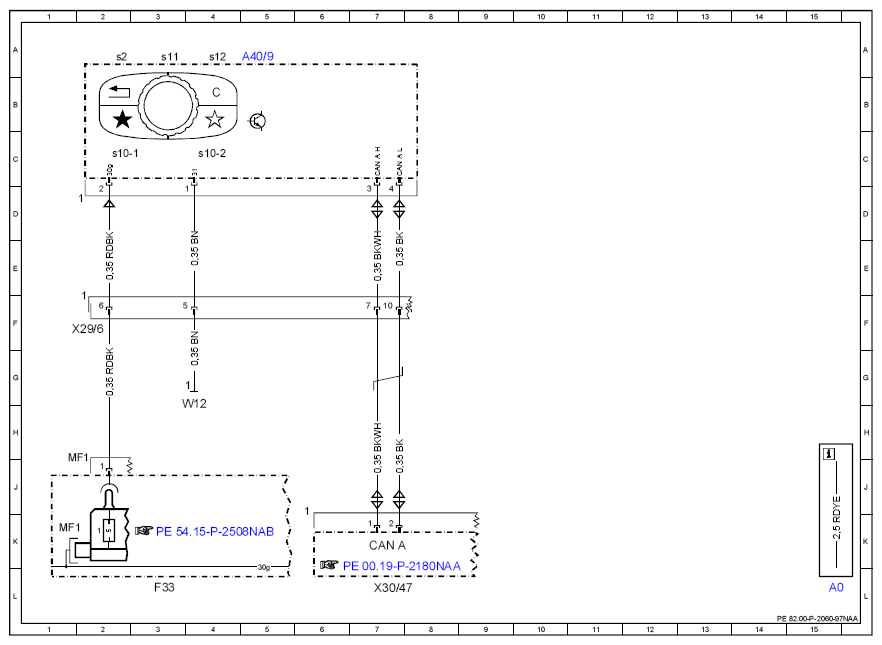

Wiring Diagram For Front Central Operating Unit - PE82.00-P-2060-97NAA
MODEL 166 up to model year 2016 Control unit A40/9
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A40/9 | Audio/COMAND control panel | 5A |
| A40/9 s10-1 | Left free programming button | 2C |
| A40/9 s10-2 | Right free programming button | 4C |
| A40/9s11 | Aud i o/COMAND contro11er | 3A |
| A40/9s12 | "Delete" button | 4A |
| A40/9s2 | "Back" button | 2A |
| CAN A | Telematics CAN | 7K |
| F33 | Battery compartment prefuse box | 3L |
| F33MF1 | Multiple fuse 1 | 1K |
| W12 | Ground point (center console) | 4H |
| X29/6 | Center console electrical connector | 2F |
| X30/47 | Telematics CAN voltage distributor electrical connector | 7L |
