Retrofit Wiring Harness In Center Console For Comand Online Incl. DVD Changer - AN82.85-P-0008-07GQ

MODEL 166.0/8

with CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)

Courtesy of MERCEDES-BENZ USA

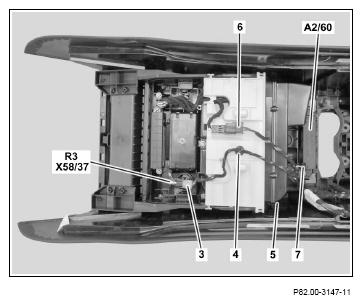

1. 1.1 Model 166.0/8 except code 301 (Smoker's package) Disconnect electrical connector (3) at center console stowage compartment socket (X58/37).
2. 1.2 Model 166.0/8 with code 301 (Smoker's package) Disconnect electrical connector (3) at front cigarette lighter with ashtray illumination (R3).
3. Unclip cable tie with mounting clip (4) using assembly wedge from center console.
4. Model 166.0/8 with code 876 (Ambiance illumination) and except code 930 (Tachograph preinstallation) Disconnect electrical connector (5) for cup holder illumination.
5. Model 166.0/8 with code 311 (Temperature-controlled cup holder)

   Disconnect electrical connector (6) for cup holder temperature control.

6. Model 166.0/8 as of model year 2016 with code 893 (KEYLESS-GO start function) or model 166.0/8 with code 889 (KEYLESS-GO)

   Disconnect electrical connector (7) from center console KEYLESS-GO antenna (A2/60).

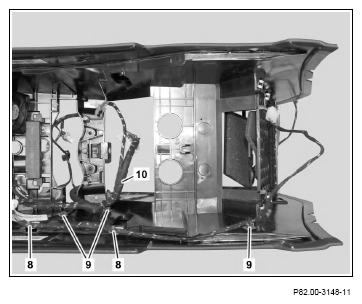

7. Unclip cable tie with mounting clips (9) from center console using assembly wedge.
8. Release retaining clamps (8) from center console and remove center console wiring harness (10).

   : Replace center console wiring harness (10) with new center console wiring harness with electrical feed line for touchpad.

9. Install in the reverse order.
