Retrofit Wiring Harness For Running Board Illumination - AZ82.10-P-0015-02GQ

MODEL 166.0

MODIFICATION NOTES

13.07.2012 Change to contact cavity assignment Assignment of contact cavity 1; 2 swapped in operation step 18 and 29.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20

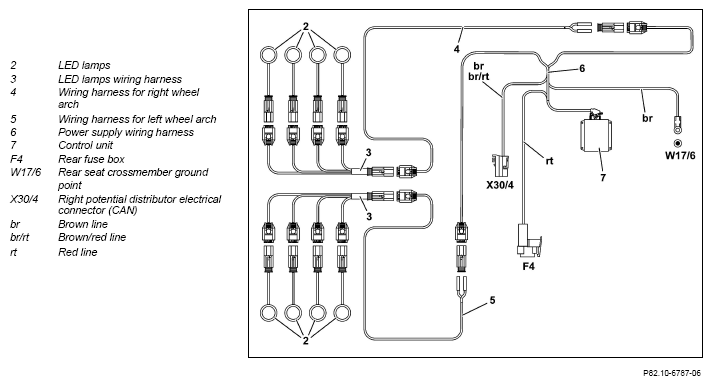

Connection scheme

G12081810

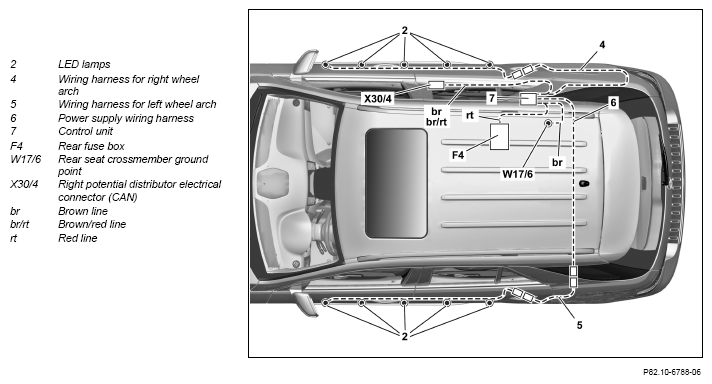

Routing diagram

G12081811

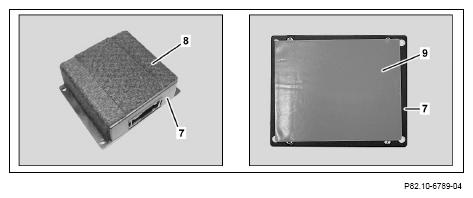

  1. Stick Velcro strip (9) to control unit (7).
  2. Stick felt tape (8) to control unit (7).
    G12081812
  3. Connect black 18-pin coupling of wiring harness for voltage supply to control unit (7).
  4. Stick control unit (7) using Velcro strip onto crossmember under the rear seat.

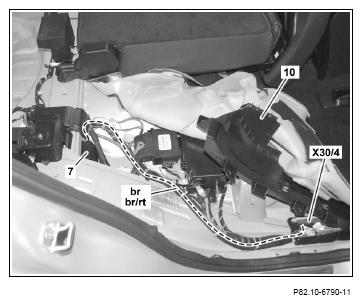

  5. Detach and raise cable duct (10).
  6. Route twisted brown line (BN) and brown/red line (BN/RD) of wiring harness for voltage supply from control unit (7) to right potential distributor (CAN) electrical connector (X30/4) and fix in place using cable ties.
  7. Connect black 2-pin connector of twisted brown line (BN) and brown/red line (BN/RD) to right potential distributor (CAN) electrical connector (X30/4).

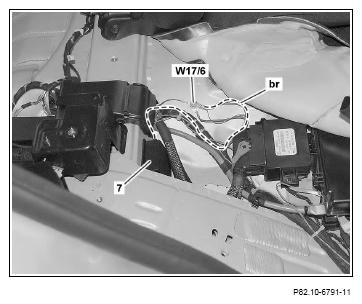

    G12081813
  8. Route brown line (BN) of wiring harness for voltage supply from control unit (7) to rear seat crossmember ground point (W17/6) and fix in place using cable ties.
  9. Connect brown line (BN) of wiring harness for voltage supply to rear seat crossmember ground point (W17/6)
    G12081814
  10. Route red line (rd) of wiring harness for voltage supply from control unit (7) to rear fuse box (F4) and fix in place using cable ties.

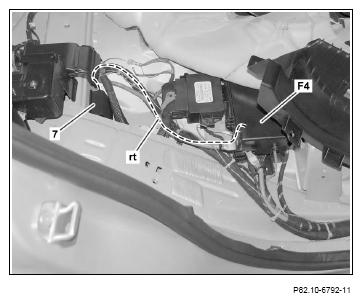

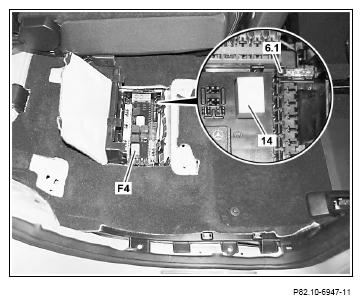

    G12081815
  11. Plug yellow fuse carrier (6.1) of red line into slot "123" at rear fuse box (F4).

    IMPORTANT Slot "123" is labeled.

  12. Insert fuse with 5 A fuse rating into yellow fuse carrier (6.1).
  13. Plug jumper (14) into slot "i" at rear fuse box (F4).

    IMPORTANT Slot "i" is labeled.

    G12081816
  14. Route right line branch-off line of wiring harness for voltage supply (6) from control unit to wheel well and fix in place using cable ties.

    IMPORTANT The right line branch-off line is the shorter line branch-off line of the wiring harness for the voltage supply (6).

  15. Remove grommet (13).

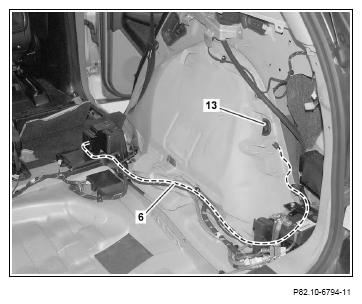

    G12081817
  16. Route left line branch-off line of wiring harness for voltage supply (6) from control unit to left rear door cutout and fix in place using cable ties.

    IMPORTANT The left line branch-off line is the longer line branch-off line of the wiring harness for the voltage supply (6).

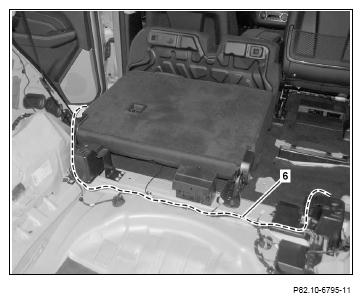

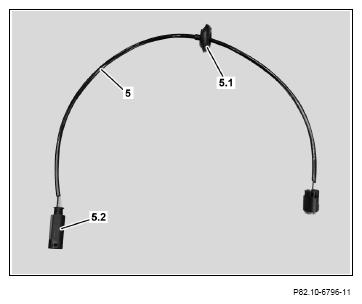

    G12081818
  17. Fit grommet (5.1) to wiring harness for left wheel arch (5).

    IMPORTANT Observe shown installation position.

  18. Fit black 2-pin connector (5.2) to wiring harness of left wheel arch (5).

    IMPORTANT Contact cavity assignment: contact cavity 1: white line, contact cavity 2: black line

    G12081819

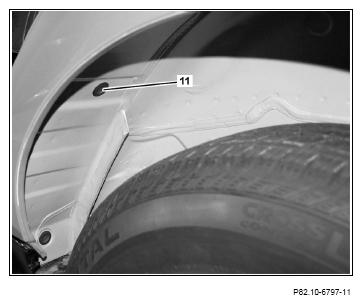

  19. Remove grommet (11) from left rear wheel arch.
    G12081820
  20. Connect black 2-pin coupling (5.3) of wiring harness for left wheel arch (5) to black 2-pin connector (3.4) of wiring harness for LED lamps.
  21. Route wiring harness for left wheel arch (5) through the passage in the wheel arch and seal with grommet (5.1).

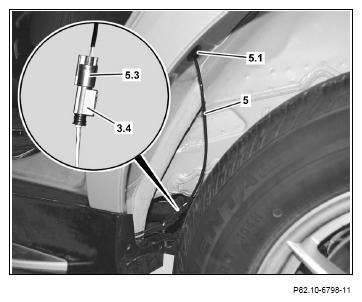

    G12081821
  22. Detach cover (12).
  23. Make cut in covering (12) approx. 1.5 cm.

    IMPORTANT The covering (12) must be cut far enough to enable the black 2-pin connector (5.2) to be passed through it.

  24. Install cover (12).
  25. Connect black 2-pin connector (5.2) of wiring harness for left wheel arch (5) to black 2-pin coupling (6.2)

    IMPORTANT The black 2-pin coupling (6.2) is located on the left line branch-off line of the wiring harness for the voltage supply.

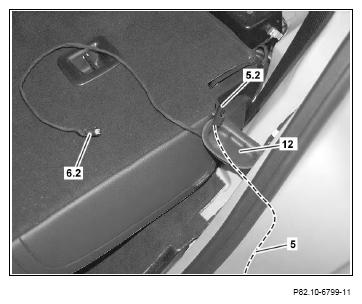

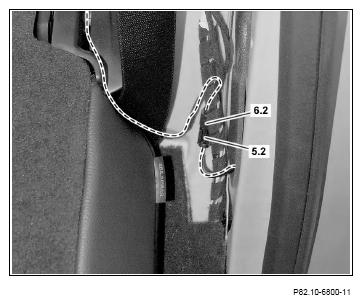

    G12081822
  26. Wrap felt tape around black 2-pin connector (5.2) and the black 2-pin coupling (6.2).
  27. Fasten black 2-pin connector (5.2) and the black 2-pin coupling (6.2) using cable ties to vehicle wiring harness.

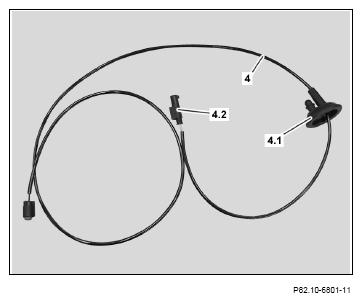

    G12081823
  28. Fit grommet (4.1) to wiring harness for right wheel arch (4).

    IMPORTANT Observe shown installation position.

  29. Fit black 2-pin connector (4.2) to wiring harness of right wheel arch (4).

    IMPORTANT Contact cavity assignment: contact cavity 1: white line, contact cavity 2: black line

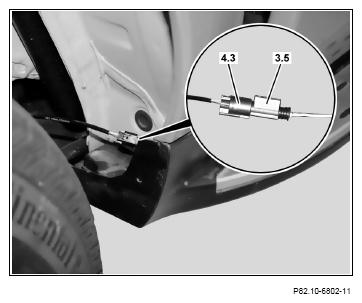

    G12081824
  30. Connect black 2-pin coupling (4.3) of wiring harness for right wheel arch to black 2-pin connector (3.5) of wiring harness for LED lamps.
    G12081825
  31. Route wiring harness for right wheel arch (4), as shown, to passage in wheel arch and fix in place using felt tape.

    IMPORTANT Route wiring harness for right wheel arch (4) under tube of tank filler neck and the vent lines.

  32. Route wiring harness for right wheel arch (4) through the passage in the wheel arch and seal with grommet (4.1).
  33. Seal grommet (4.1) additionally with sealant.

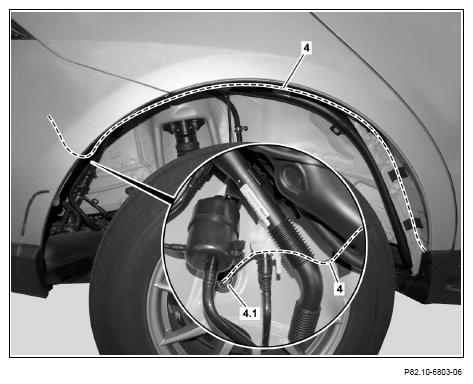

    G12081826
  34. Connect wiring harness for right wheel arch (4) to right line branch-off line of wiring harness for voltage supply (6).

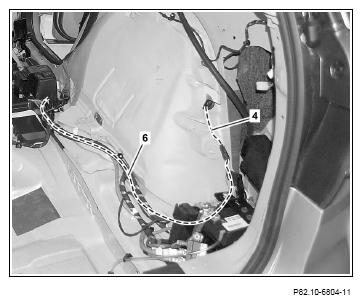

    G12081827
