Retrofit Tablet PC Mount Holder - AZ82.80-P-0003-04GQA

MODEL 164.1/8, 166.0/8, 204.9, 251.0/1

with CODE 866 (Preinstallation for rear entertainment system)

The following work procedure is shown on the right side of the vehicle. Installation on the left side of the vehicle is performed correspondingly.

Cut out cutting template (11) along broken line.
The cutting template (11) from the installation kit must be used.

Otherwise the seat cover will be damaged.

The cutting template (11) is included in the installation kit.

Cut along lower marking (arrow).

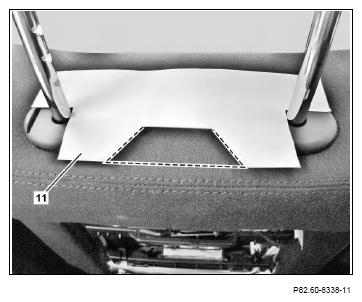

Apply cutting template (11) to head restraint and mark separating point (broken line).
Fix cutting templates (11) in place, using adhesive tape if required.
Remove cutting template (11).
Cut seat cover with a knife.
Be very careful when cutting. Otherwise the seat cover will be damaged.
Work out and remove foam core.
Be very careful when cutting. Otherwise the seat cover will be damaged.
Work out seat core until mount (14) of seat is accessible.
Be very careful when cutting. Otherwise the seat cover will be damaged.

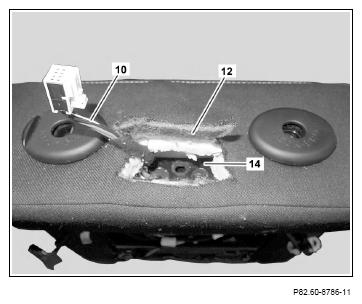

Remove line (10) out of seat.
Only the line (10) with the white 8-pin connector is required. The other line with the blue connector is not required.
Sew seam of seat cover with leather needle and thread (arrows).
The seam of the seat cover must be threaded.

The seam is hereby prevented from coming undone.

If no seam is present, this operation step can be omitted.

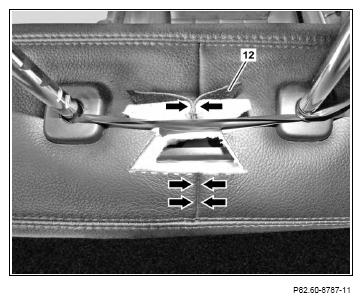

Fold shackle (12) into opening.
Insert bracket (15) into opening.

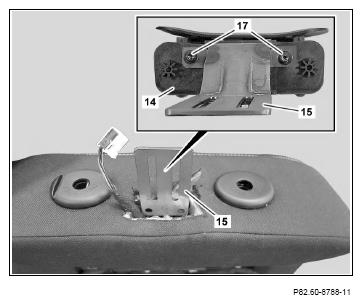

Fix bracket (15) in place using screws/bolts (17) at mount (14).
The mount (14) is installed in the seat. Do not tighten bolts (17) yet.
Insert bracket (16) in opening.

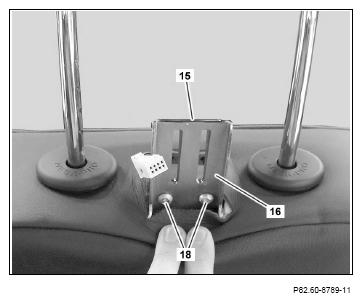

Screw bracket (16) to bracket (15) using screws/bolts (18) and counternuts.
Tighten bolts (17).
