Retrofit Rear Entertainment Screen - AZ82.60-P-0015-03GQA

MODEL 166.0/8

with CODE 866 (Preinstallation for rear entertainment system)

The following operation steps are shown on the right side of the vehicle and can be performed analogously on the left side of the vehicle.

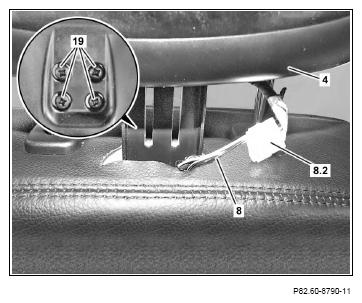

1. Slide screen (4) onto bracket.
2. Connect connector (8.2) of wiring harness (8) to screen (4).
3. Route wiring harness (8) into opening in the backrest.
4. Slide screen (4) further onto bracket until lower edge of screen (4) makes contact with backrest.
5. Tighten screen (4) at bracket from front using screws/bolts (19) contained in installation kit.
