Retrofit Mount For Tablet PC - AZ82.80-P-0003-03GQA

MODEL 164.1/8, 166.0/8, 204.9, 251.0/1

with CODE 866 (Preinstallation for rear entertainment system)

The following work procedure is shown on the right side of the vehicle. Installation on the left side of the vehicle is performed correspondingly.

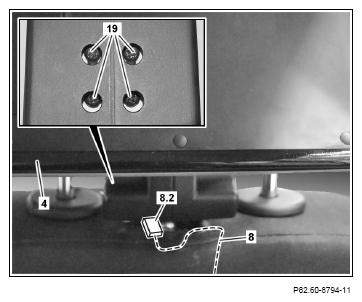

1. Slide Tablet PC mount (4) onto previously installed bracket.
2. Connect connector (8.2) from wiring harness (8) to Tablet PC mount (4).
3. Route wiring harness (8) into opening in the backrest.
4. Slide Tablet PC mount (4) further onto bracket until lower edge of Tablet PC mount (4) rests on backrest.
5. Tighten Tablet PC mount (4) using screws/bolts (19) included in installation kit from front onto bracket.
