Retrofit Most Fiber Optic Cable Wiring Harness - AN82.61-P-0001-06GQ

MODEL 166.0

except CODE (523) MB Audio 20 radio

except CODE (537) Digital radio

except CODE (810) Sound System

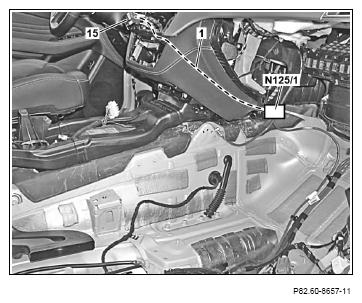

1. Install connector of optical fiber wiring harness (1) in outer slot of black 44-pin connector (15).
2. Route optical fiber wiring harness (1) from COMAND installation opening along vehicle wiring harness and fix in place using cable ties.

   The connector of the optical fiber wiring harness (1) is connected during the installation of the media interface control unit (N125/1).
