Retrofit Media Interface Wiring Harness - AN82.60-P-0016-02GQ

MODEL 166.0 except CODE (523) MB Audio 20 radio

1. Electrical connector

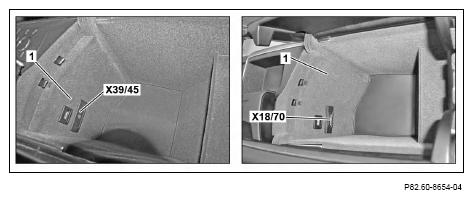

   Unclip AUX connection (X39/45) from mounting console (1).

   Electrical connector

   The AUX connection (X39/45) is no longer required.

2. Clip media interface electrical connector (X18/70) into mounting console (1).
3. Route media interface wiring harness on underside of center console.
