Retrofit Media Interface - AN82.60-P-0016GQ

MODEL 166.0 except CODE (523) MB Audio 20 radio

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove radio		AR82.60-P-7502GQ
2	Remove center console		AR68.20-P-2000GQ
3	Remove front floor covering (right)		AR68.20-P-2070GQ
	Install
4	Retrofit optical fiber for Media Oriented System Transport (MOST)	In vehicles without  one of the following codes: Code (537) Digital radio Code (810) Sound system	AN82.61-P-0001-06GQ
		In vehicles with  one of the following codes: Code (537) Digital radio Code (810) Sound system	AN82.61-P-0001-06GQA
	Notes on avoiding damage to optical fibers during repair work	With Media Oriented System Transport (MOST)	AH82.60-P-0001-05AK
	Notes on removal/installation of the optical fiber for the Media Oriented System Transport (MOST)		AH82.60-P-0001-06A
5	Retrofit power supply wiring harness		AN82.60-P-0016-03GQ
		Wiring harness repair kit, basic	Fig 1
		New passenger vehicle wiring harness repair kit	Fig 2

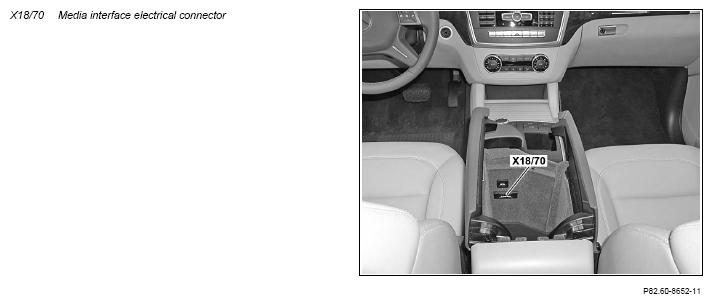

6	Retrofit media interface wiring harness with media interface electrical connector (X18/70)		AN82.60-P-0016-02GQ
7	Retrofit media interface control unit		AN82.60-P-0016-01GQ
8	Install center console	In doing so, connect connector of video signal branch-off line. Route media interface wiring harness beneath air duct and connect to media interface contro unit.	AR68.20-P-2000GQ
9	Install remaining parts
10	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add  : Code (518) Media interface
11	Document retrofitted equipment through VeDoc	Attach "Media interface retrofitted, as per AN82.60-P-0016GQ" note under the field organization texts to DG 82
12	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)		AD00.00-P-2000-04A
13	Perform variant coding with XENTRY using the software calibration number (SCN)	Variant coding with XENTRY using the software calibration number (SCN) must be carried out for the following control unit: Media interface control unit
14	Activate media interface
15	Disconnect Star Diagnosis		AD00.00-P-2000-04A
16	Perform function test with an external audio source

Fig 1: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA
