Retrofit Incar Hotspot Holder - AZ82.80-P-0002-02GQA

MODEL 166.0 (except 166.074)

with CODE 386 (Comfort telephony)

with CODE 527 (COMAND APS with single DVD drive (with navigation))

without CODE 460 (Canada version)

without CODE 494 (US version)

without CODE 498 (Japanese version)

without CODE 830 (China version)

MODEL 166.0 (except 166.074)

with CODE 386 (Comfort telephony)

with CODE 512 (COMAND APS with DVD changer)

without CODE 460 (Canada version)

without CODE 494 (US version)

without CODE 498 (Japanese version)

without CODE 830 (China version)

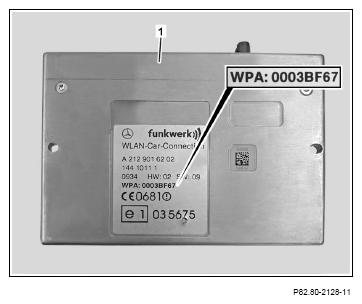

1. Note "WPA" number of InCar Hotspot (1) on back of operator's manual.

   The operator's manual is included in the installation kit. Only note the "WPA" number if this has not yet been attached to the rear of the operator's manual in the form of a sticker. The "WPA" number of the InCar Hotspot (1) is on the model plate.

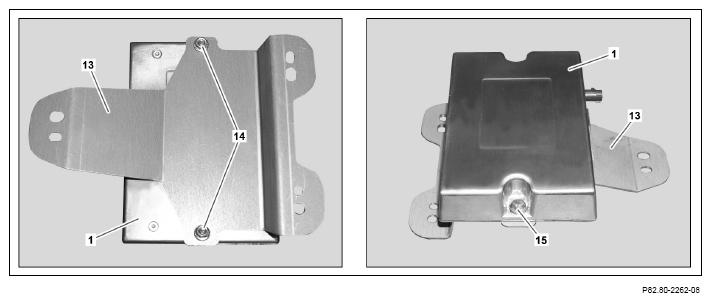

2. Position bracket (13), as shown, on the rear of the InCar Hotspot (1) as shown and screw in place with screws/bolts (15) and the corresponding nuts (14).

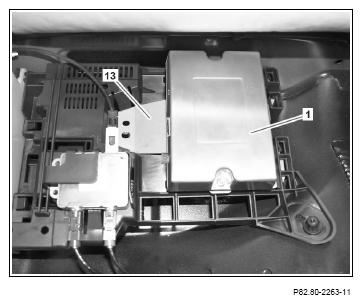

3. Clip InCar Hotspot (1) with bracket (13) under left rear bench seat, as shown.
