Retrofit Illuminated Door Sill Molding - AZ82.20-P-0001GQ

MODEL 166.0/8

with CODE 876 (Interior lighting package)

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove front floor covering (left)		AR68.20-P-2050GQ
2	Remove front floor covering (right)		AR68.20-P-2070GQ
3	Remove left and right front footwell underfloor plate
4	Remove floor covering in rear passenger compartment	MODEL 166.0 with CODE 876 (Interior lighting package)	AR68.20-P-4800GQ
		MODEL 166.8 with CODE 876 (Interior lighting package)	AR68.20-P-4800GQX
5	Remove outer door sill	Door sill is discontinued part.	AR88.80-P-1001GQ
	Install
6	Retrofit illuminated door sill molding wiring harness		AZ82.20-P-0001-04GQ

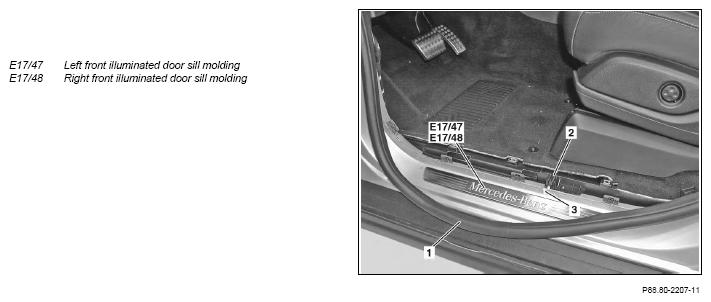

7	Install left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48)		AR88.80-P-1001GQ
8	Install remaining parts
9	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "Illuminated door sill molding retrofitted as per AN82.20-P-0001GQ" note under field organization texts to design group 82.
10	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)		AD00.00-P-2000-04A
11	Perform variant coding with XENTRY using the software calibration number (SCN)
12	Disconnect STAR DIAGNOSIS		AD00.00-P-2000-04A
13	Perform function check on illuminated door sill moldings	Opening the doors activates the illuminated door sill moldings.
14	Remove protective foil from illuminated door sill moldings

PARTS ORDERING NOTE

Part no.	Designation	Quantity
A166 680 24 35	AMG illuminated door sill molding, 2-fold	1
