Retrofit Illuminated Door Sill Molding - AN82.20-P-0001GQ

MODEL 166.0

as of model year 2016

except CODE 876 (ambient lighting)

except CODE P22 (EXCLUSIVE interior)

MODEL 166.0

up to model year 2016

except CODE 876 (ambient lighting)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move front seats to the foremost position and up
2	Remove cargo area floor at front	MODEL 166.0 Model 166.063 as of model year 2016	AR68.80-P-5800GQA
3	Remove rear seat cushion	Model 166.0 as of model year 2016 except code 876 (ambient lighting) except code P22 (EXCLUSIVE interior) 60 % rear seat cushion Model 166.0 up to model year 2016 except code 876 (ambient lighting) 60 % rear seat cushion	AR91.12-P-1020GQ
		Model 166.0 as of model year 2016 except code 876 (ambient lighting) except code P22 (EXCLUSIVE interior) 40 % rear seat cushion Model 166.0 up to model year 2016 except code 876 (ambient lighting) 40 % rear seat cushion	AR91.12-P-1020GQA
4	Remove rear backrest	Model 166.0 as of model year 2016 except code 876 (ambient lighting) except code P22 (EXCLUSIVE interior) 60% rear seat Model 166.0 up to model year 2016 except code 876 (ambient lighting) 60% rear seat	AR91.12-P-1620GQ
		Model 166.0 as of model year 2016 except code 876 (ambient lighting) except code P22 (EXCLUSIVE interior) 40% rear seat Model 166.0 up to model year 2016 except code 876 (ambient lighting) 40% rear seat	AR91.12-P-1620GQA
5	Remove lower trim on B-pillar	In doing so, only unclip and loosen upper trim of B-pillar.	AR68.30-P-4700GQ
6	Remove outer door sills at front entrances	The outer door sills are no longer required	AR88.80-P-1001GQ

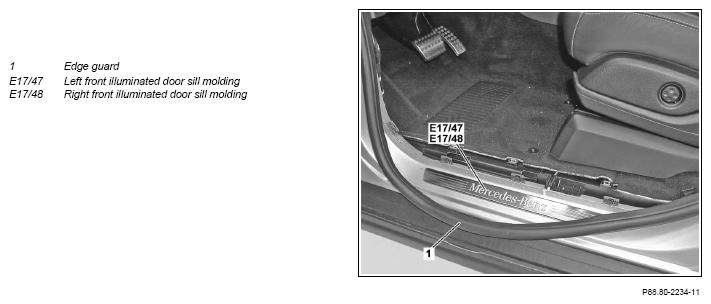

7	Detach edge guard (1) in area of front left and right entrance
8	Fold over rear floor covering toward front
9	In the EPC in design group 99, check whether the rear control unit installed in accordance with the vehicle equipment can be used for retrofitting the illuminated door sill moldings	If the rear control unit has to be removed, then this is no longer required. With compatible rear control unit: ↓ Expose rear control unit until electrical connectors are accessible. With incompatible rear control unit: ↓ Remove rear control unit.	AR54.21-P-2009GQ
	Install
10	Install new rear control unit	With previously removed rear control unit. Electrical connectors must remain accessible for follow-up work.	AR54.21-P-2009GQ
11	Retrofit left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48)		AN82.20-P-0001-04GQ
		Cleaner	*BR00.45-Z-1025-04A
12	Retrofit wiring harness for left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48)		AN82.20-P-0001-03GQ
		Right rear seat ground point	*BA00.19-P-1018-01G
		New passenger car wiring harness repair kit	Fig 1
		Wiring harness repair kit, basic	Fig 2
13	Install remaining parts
14	Remove protective foil of left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48)
	Update Vehicle Documentation (VeDoc)
15	Attach note "Illuminated door sill moldings retrofitted as per AN82.20-P-0001GQ" note under field organization texts to design group 68
16	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)		AD00.00-P-2000-04A
17	Carry out variant coding using software calibration number (SCN)	Rear control unit
18	Disconnect diagnostic system		AD00.00-P-2000-04A
	Check
19	Check function of left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48)	By opening the front doors, the left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48) are activated.

Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
