Retrofit Holder For CA Module Card Reader - AZ82.60-P-0032-02GQ

MODEL 166

MODEL 292

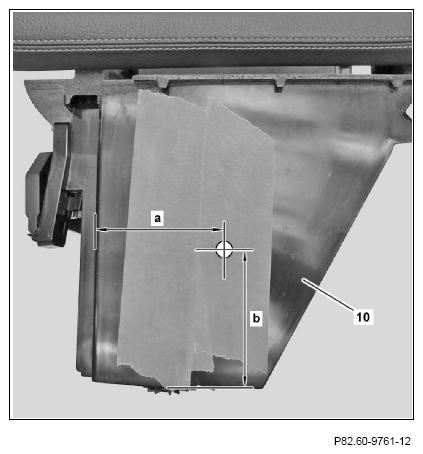

1. Mask off area for mounting bracket for CA module card reader on stowage box (10) with adhesive tape.
2. Mark hole.

   Dimensions:

   a = 85 mm

   b = 110 mm

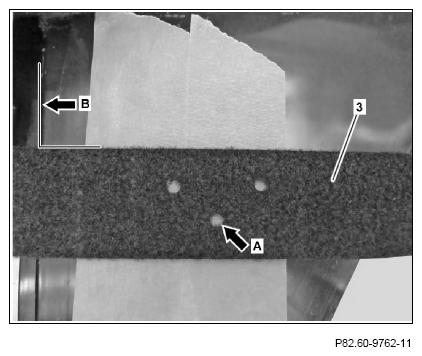

3. Position velcro strip (3) on previously marked hole (arrow A), align and mark remaining holes according to velcro strip (3) hole pattern.

   Velcro strip (3) must be aligned at a right angle to reference edge (arrow B).

4. Remove velcro strip (3).
5. Drill marked holes with dia. 8 mm.

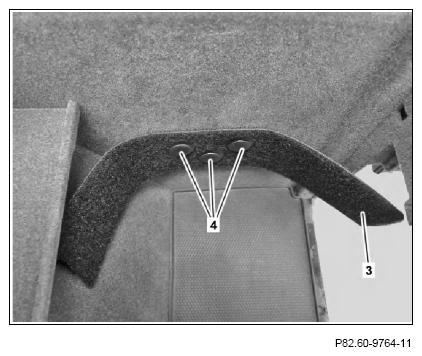

6. Fasten velcro strip (3) to stowage compartment with expansion rivets (4).

Use expansion rivets (4) with dia. 8 mm. Expansion rivets (4) are included in scope of delivery.
