Retrofit Exit And Warning Lamp With Logo Projector - AZ82.20-P-0020A

MODEL 156.9 with CODE U62 (Exterior light and sight package)

MODEL 166.0 with CODE 876 (Interior Light package) except CODE 587 (Ambient lighting with projection of brand logo)

MODEL 166.8 with CODE 876 (Interior Light package) except CODE 587 (Ambient lighting with projection of brand logo)

MODEL 176.0 with CODE U62 (Exterior light and sight package)

MODEL 205.0/1/2 with CODE 876 (Interior Light package)

MODEL 212.0/2 as of model year 2014 except CODE 953 (Standard equipment)

except CODE H76 (Facet-look aluminium trim)

MODEL 212.0/2 up to model year 2014

MODEL 213.0/1/2 with CODE 877 (ambient lighting)

MODEL 246.2 with CODE U62 (Exterior light and sight package)

MODEL 253.3/9 with CODE 876 (Interior Light package)

MODEL 253.3/9 with CODE 877 (ambient lighting)

MODEL 292.3 with CODE 876 (Interior Light package) except CODE 587 (Ambient lighting with projection of brand logo)

Illustrated on model 166.0

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4)		AZ82.20-P-0020-02A
		The left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4) are no longer required.
		Long wedge	Fig 1
	Check
2	Check assignment of black 2-pin coupling of left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4)	Model 213.0/1/2 with code 877 (ambient lighting) The black/violet line must be installed in contact cavity "1" of the black 2-pin connector socket. The brown/white line must be installed in contact cavity "2" of the black 2-pin connector socket. The contact cavities of the black 2-pin connector socket are labeled. If assignment incorrect ↓ Modify electric line of black 2-pin connector socket of left front door exit and warning lamp (E17/3) or right front door exit and warning lamp (E17/4).	AZ82.20-P-0020-03A
		Wiring harness repair kit, basic	Figure
		New passenger car wiring harness repair kit	Figure
	Install

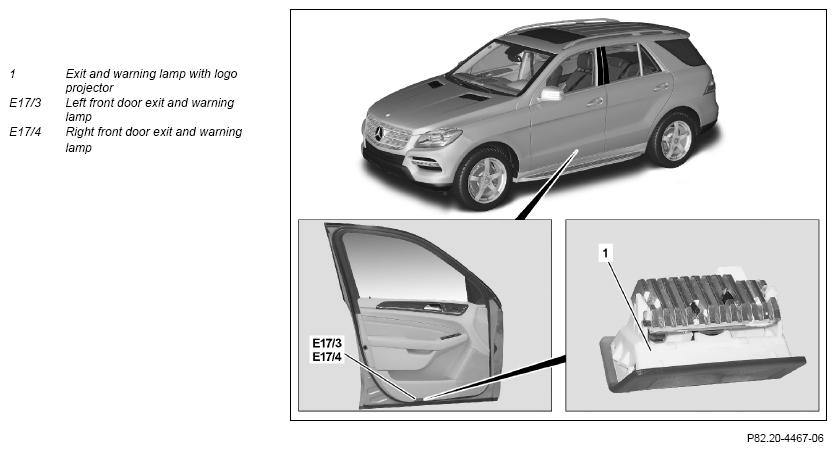

3	Install exit and warning lamp with logo projector (1) at right and left		AZ82.20-P-0020-01A
	Update Vehicle Documentation (VeDoc)
4	Attach note "Exit and warning lamp retrofitted with logo projector as per AZ82.20-P-0020A " under field organization text to design group 72 and design group 82
	Check
5	Perform function test	The entry and exit illumination on overhead control panel control unit must be switched on.

Part no.	Designation	Quantity
KG 98	Parts kit for exit and warning lamps with logo projector	1
