Retrofit DVD Player - AN82.60-P-0013-01GQ

MODEL 166

with CODE 866 (Pre-installation for Rear Seat Entertainment System)

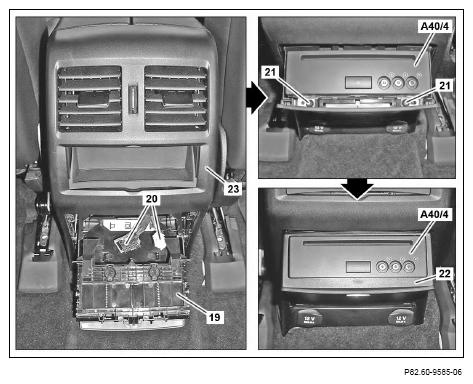

1. Open DVD player mount (19), release at rear center console (23) and completely fold out.
2. Connect electrical connectors (20) to DVD player (A40/4).

   The number of electrical connectors (20) varies depending on the vehicle equipment.

3. Insert DVD player (A40/4) in DVD player mount (19).
4. Secure DVD player (A40/4) using screws/bolts (21).
5. Install cover (22) and close DVD player mount (19).
