Retrofit Connecting Cable For Drive Kit Plus For Smartphones - AZ82.60-P-0027-02GQ

MODEL 166.0

MODEL 166.8

The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles these operation steps must be carried out mirror-inverted.

1. Open glove compartment (25).
2. Remove intermediate bottom from glove compartment (25).

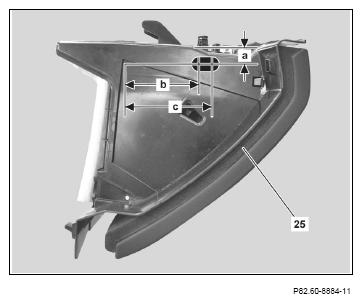

3. Make markings for drill hole center points for cutout at glove compartment (25).

   Dimensions:

   a = 24 mm

   b = 114 mm

   c = 126 mm

4. Drill two holes with a diameter of 15 mm to match the markings.
5. Use file to make an oval-shaped cutout.
6. Cut out intermediate bottom (29) in cross-hatched area to match cutout as made.
7. Open glove compartment (25).
8. Clean inside area of glove compartment (25).
9. Install intermediate bottom (29).
10. Place connection line (40) and data line (42) in glove compartment (25) and route outwards through previously made cutout.
11. Install grommet in cutout.

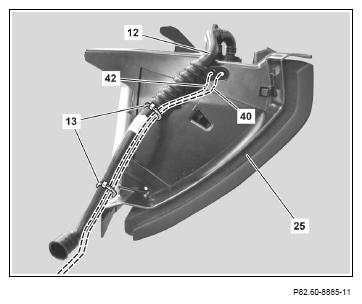

12. Route connection line (40) and data line (42) along air duct (12), and fix in place using cable ties (13).
13. Place the connection line between the Bluetooth module and the Drive Kit Plus control unit in the front, left area of the front passenger footwell.

    The connection line is connected at a later stage to the Bluetooth module and the Drive Kit Plus control unit.

14. Place glove compartment (25) in front passenger footwell.
