Retrofit Bluetooth(R) Module For Drive Kit Plus For Smartphones - AZ82.60-P-0027-07GQ

MODEL 166.0

MODEL 166.8

The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles these operation steps must be carried out mirror-inverted.

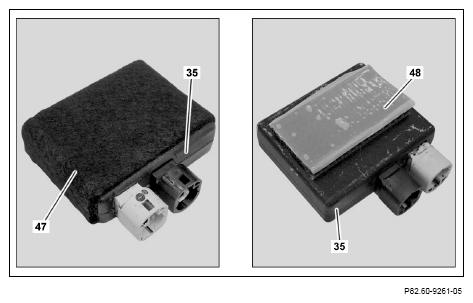

1. Stick felt tape (47) to the top side of the Bluetooth module (35).
2. Stick Velcro strip (48) to underside of the Bluetooth module (35).

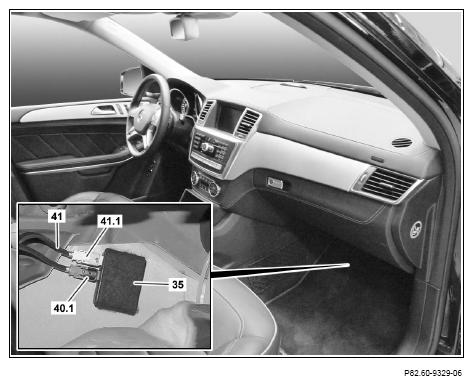

3. Route connection line (41) from Drive Kit Plus control unit to installation location of Bluetooth module (35) and fix in place using felt tape.
4. Connect white 4-pin connector (41.1) to the Bluetooth module (35).
5. Connect black 4-pin connector (40.1) to the Bluetooth module (35).
6. Remove carrier foil on the Velcro strip of the Bluetooth module (35).
7. Stick Bluetooth module (35) into front passenger footwell.
