Retrofit Adapter Wiring Harness For Drive Kit Plus For Smartphones - AZ82.60-P-0027-01GQ

MODEL 166.0

MODEL 166.8

G12081909Courtesy of MERCEDES-BENZ USA

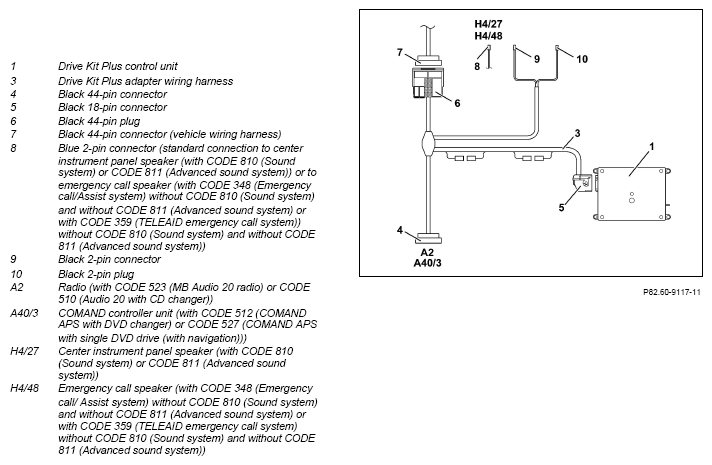

G12081910

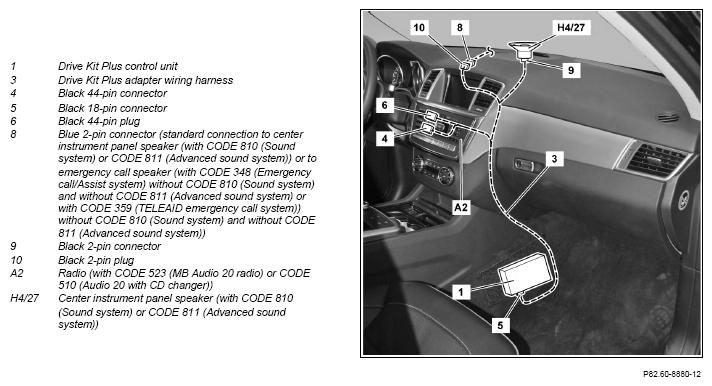

G12081911

IMPORTANT The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles these operation steps must be carried out mirror-inverted.

  1. Wrap felt tape around speaker branch-off line (a) of Drive Kit Plus adapter wiring harness (3).

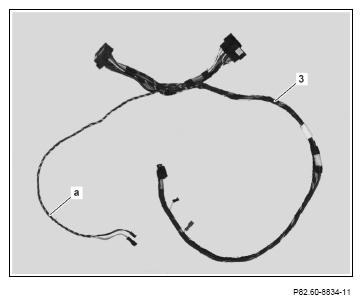

    G12081912
  2. Remove black, 2-pin connector for optical fiber (11) from black, 44-pin connector (7), and install in black, 44-pin connector (4).

    IMPORTANT With CODE 518 (Media Interface) or CODE 536 (SIRIUS satellite radio) or CODE 537 (Digital radio) or CODE 810 (Sound system) or CODE 811 (Advanced sound system) or CODE 863 (Digital/analog TV tuner)

  3. Connect black 44-pin plug (6) of Drive Kit Plus adapter wiring harness (3) to black 44-pin connector (7) of vehicle wiring harness.

    IMPORTANT The black 44-pin connector (4) is connected to the audio component at a later stage.

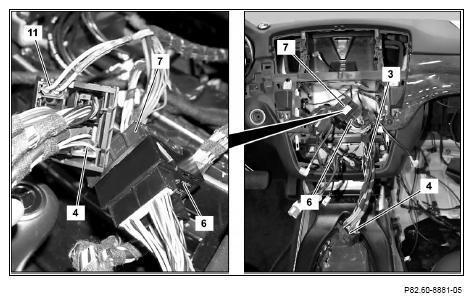

    G12081913
  4. Route Drive Kit Plus adapter wiring harness (3) into the audio component device installation opening at bottom left.

    IMPORTANT The size of the Drive Kit Plus adapter wiring harness (3) hampers installation of the audio component. The audio component can only be installed if the Drive Kit Plus adapter wiring harness (3) is as low down as possible in the rear area of the AAC control and operating unit.

  5. Unclip speaker cover with SPECIAL TOOL long wedge and lift.

    NOTES Avoid prying motions on one side with high amount of force.

    Otherwise the speaker cover and its catch hooks may be damaged.

  6. Disconnect electrical connectors on underside of speaker cover.

    IMPORTANT The number of electrical connectors is dependent on the vehicle equipment.

  7. Unclip center instrument panel speaker (H4/27) or emergency call speaker (H4/48).

    IMPORTANT With CODE 348 (Emergency call/Assist system) or CODE 359 (TELEAID emergency call system) or CODE 810 (Sound system) or CODE 811 (Advanced sound system)

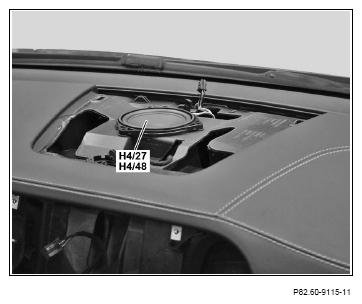

    G12081914
  8. Remove blue 2-pin connector (8) from center instrument panel speaker (H4/27) or emergency call speaker (H4/48).

    IMPORTANT With CODE 348 (Emergency call/Assist system) or CODE 359 (TELEAID emergency call system) or CODE 810 (Sound system) or CODE 811 (Advanced sound system)

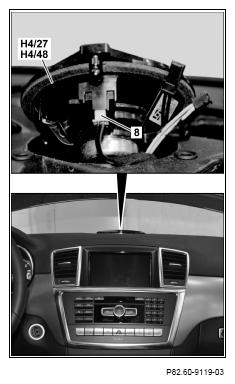

    G12081915
  9. Route black 18-pin connector (5) of Drive Kit Plus adapter wiring harness (3) into front passenger footwell.

    IMPORTANT The black 18-pin connector (5) is connected to the Drive Kit plus control unit (1) at a later stage.

  10. Route black 2-pin connector (9) and black 2-pin plug (10) of Drive Kit Plus adapter wiring harness (3) to installation location of center instrument panel speaker (H4/27) or emergency call speaker (H4/48).

    IMPORTANT Use a pull-through device.

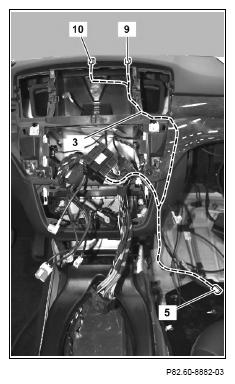

    G12081916
  11. Swap contact carrier of blue 2-pin connector (8) of vehicle wiring harness and contact carrier of black 2-pin connector (9) of Drive Kit Plus adapter wiring harness.

    IMPORTANT With CODE 348 (Emergency call/Assist system) or CODE 359 (TELEAID emergency call system) or CODE 810 (Sound system) or CODE 811 (Advanced sound system)

    IMPORTANT To do so, remove contact springs for all lines from the blue 2-pin connector (8) and the black 2-pin connector (9), and install in the respective other one.

    New assignment of blue 2-pin connector (8):

    Contact cavity 1 = Red/blue line (RD/BU)

    Contact cavity 2 = White/blue line (WH/BU)

    New assignment of black 2-pin connector (9):

    Contact cavity 1 = Green line (GN)

    Contact cavity 2 = Green/black line (GN/BK)

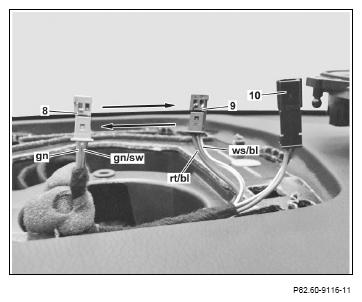

    G12081917

    12.1 Connect black 2-pin plug (10) to black 2-pin connector (9).

    With CODE 348 (Emergency call/Assist system) or CODE 359 (TELEAID emergency call system) or CODE 810 (Sound system) or CODE 811 (Advanced sound system)

    Without CODE 348 (Emergency call/Assist system) and without CODE 359 (TELEAID emergency call system) and without CODE 810 (Sound system) and without CODE 811 (Advanced sound system)

    With CODE 348 (Emergency call/Assist system) or CODE 359 (TELEAID emergency call system) or CODE 810 (Sound system) or CODE 811 (Advanced sound system)

    Without CODE 348 (Emergency call/Assist system) and without CODE 359 (TELEAID emergency call system) and without CODE 810 (Sound system) and without CODE 811 (Advanced sound system)

    12.2 Strap down black 2-pin plug (10), and fasten into the installation opening for the center instrument panel speaker using felt tape.

    13.1 Connect blue 2-pin connector (8) to center instrument panel speaker or emergency call speaker.

    13.2 Connect blue 2-pin connector (8) to center instrument panel speaker included in scope of supply.
