Remove Exit And Warning Lamp - AZ82.20-P-0020-02A
MODEL 156.9 with CODE U62 (Exterior light and sight package)
MODEL 166.0 with CODE 876 (Interior Light package) except CODE 587 (Ambient lighting with projection of brand logo)
MODEL 166.8 with CODE 876 (Interior Light package) except CODE 587 (Ambient lighting with projection of brand logo)
MODEL 176.0 with CODE U62 (Exterior light and sight package)
MODEL 205.0/1/2 with CODE 876 (Interior Light package)
MODEL 212.0/2 as of model year 2014 except CODE 953 (Standard equipment) except CODE H76 (Facet-look aluminium trim)
MODEL 212.0/2 up to model year 2014
MODEL 213.0/1/2 with CODE 877 (ambient lighting)
MODEL 246.2 with CODE U62 (Exterior light and sight package)
MODEL 253.3/9 with CODE 876 (Interior Light package)
MODEL 253.3/9 with CODE 877 (ambient lighting)
MODEL 292.3 with CODE 876 (Interior Light package) except CODE 587 (Ambient lighting with projection of brand logo)
- Switch off entrance and exit illumination at overhead control panel control unit.

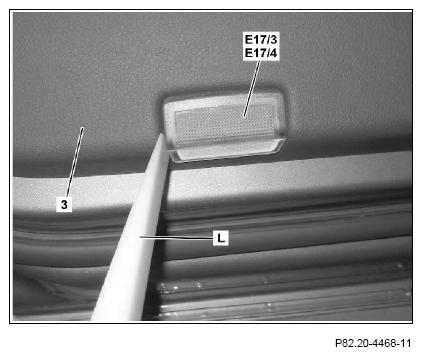

- Remove left front door exit and warning lamp (E17/3) or right front door exit and warning lamp (E17/4) from door trim (3) using
long wedge (L).
Unclip left front door exit and warning lamp (E17/3) or right front door exit and warning lamp (E17/4) from below starting at the left side.
The electrical connector is located on the right side and could otherwise be damaged.

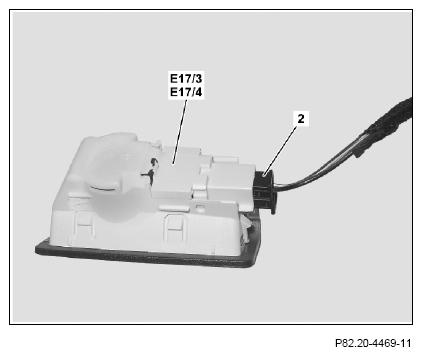

- Detach black 2-pin connector socket (2) from left front door exit and warning lamp (E17/3) or right front door exit and warning lamp (E17/4).
