Program Rear Entertainment Regional Code - AZ82.60-P-0015-06GZ

MODEL 156.9, 164.1/8, 166.0/8, 204.0 (except 204.077), 204.2 (except 204.277), 204.9, 211.0/2/6, 212.0/1/2, 218.3/9, 219.3, 221.0/1, 242, 246, 251.0/1

G12081872
G12081873

IMPORTANT Both screens are already switched on. No DVD may be inserted.

The region code must be programmed on the two screens.

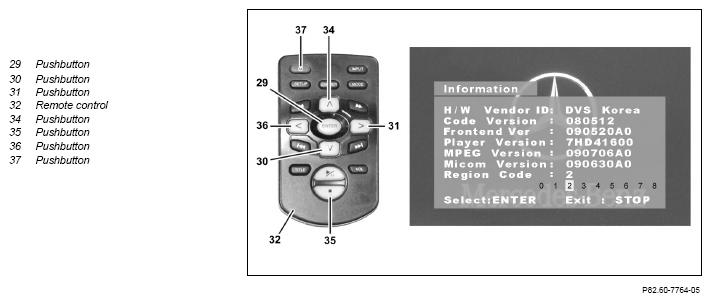

  1. Press following button combination on remote control (32):

    • Button (34)
    • Button (30)
    • Button (34)
    • Button (29)

    IMPORTANT Button (29) is used to confirm the entry.

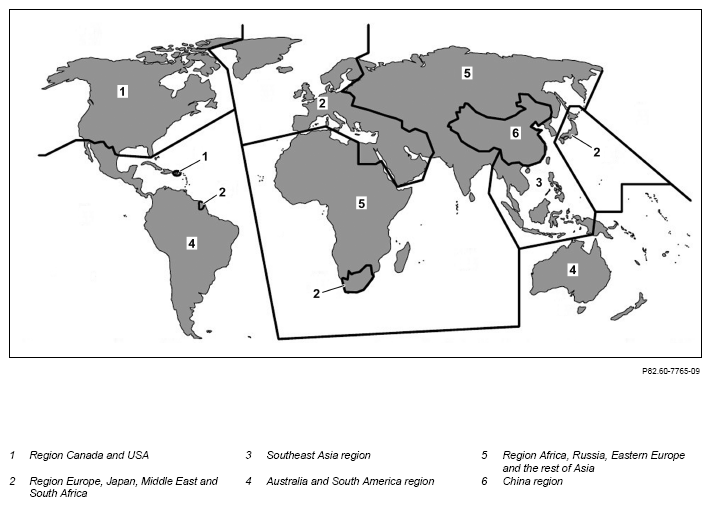

  2. Select the corresponding regional code with button (31) or button (36).
  3. Press button (29) to confirm entry.
  4. Press button (35) to exit menu.
  5. Switch off rear entertainment by pressing button (37).
