Prepare Vehicle For Retrofit Of Drive Kit Plus For The Apple Iphone - AZ82.60-P-0019-08GQ

MODEL 166.0

MODEL 166.8

IMPORTANT The following operation steps describe the work to be performed on a left-hand drive vehicle. With right-hand drive vehicles these operation steps must be carried out mirror-inverted.

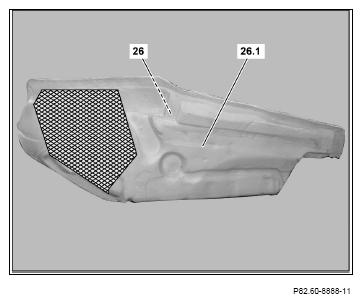

  1. Remove foam insulation (26.1) of right front floor covering (26) in cross-hatched area.
    G12081904

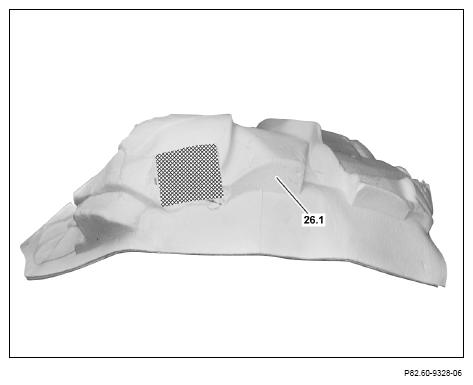

  2. Remove foam insulation (26.1) of right front floor covering in cross-hatched area according to the installation location and exterior contours of Bluetooth module.
    G12081905
