Install Exit And Warning Lamp With Logo Projector - AZ82.20-P-0020-01A

MODEL 156.9 with CODE U62 (Exterior light and sight package)

MODEL 166.0 with CODE 876 (Interior Light package) except CODE 587 (Ambient lighting with projection of brand logo)

MODEL 166.8 with CODE 876 (Interior Light package) except CODE 587 (Ambient lighting with projection of brand logo)

MODEL 176.0 with CODE U62 (Exterior light and sight package)

MODEL 205.0/1/2 with CODE 876 (Interior Light package)

MODEL 212.0/2 as of model year 2014 except CODE 953 (Standard equipment)

except CODE H76 (Facet-look aluminium trim)

MODEL 212.0/2 up to model year 2014

MODEL 213.0/1/2 with CODE 877 (ambient lighting)

MODEL 246.2 with CODE U62 (Exterior light and sight package)

MODEL 253.3/9 with CODE 876 (Interior Light package)

MODEL 253.3/9 with CODE 877 (ambient lighting)

MODEL 292.3 with CODE 876 (Interior Light package) except CODE 587 (Ambient lighting with projection of brand logo)

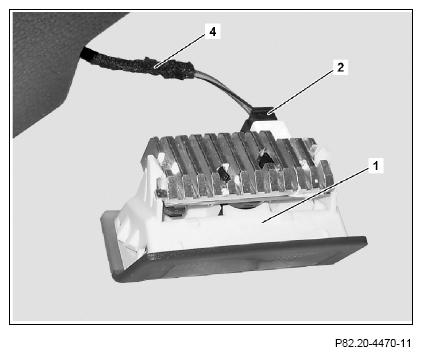

1. Connect black 2-pin connector socket (2) of electrical line (4) to exit and warning lamp with logo projector (1).

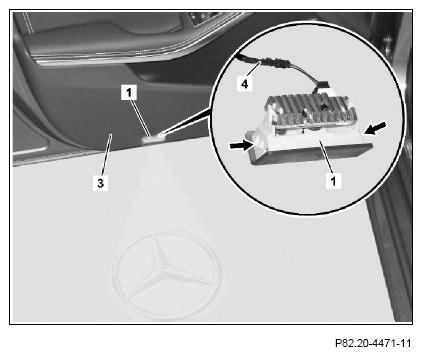

   Shown on model 176.0

2. Install exit and warning lamp with logo projector (1) in cutout of door panel (3).

Do not pinch or crush electrical line (4).

Otherwise, the electrical line (4) may be damaged and the connected systems malfunction.

Install exit and warning lamp with logo projector (1) with the white lens facing downward. Ensure that catch tabs (arrows) are seated and engaged correctly in the door panel (3).
