Removing And Installing Loudspeaker In Instrument Panel - AR82.62-P-7833GQ

MODEL 166, 292

Shown on MODEL 166 with CODE 220 (PARKTRONIC)

	Remove/install
1	Switch on ignition and store transmitter key outside of transmission range (min. 2 m)

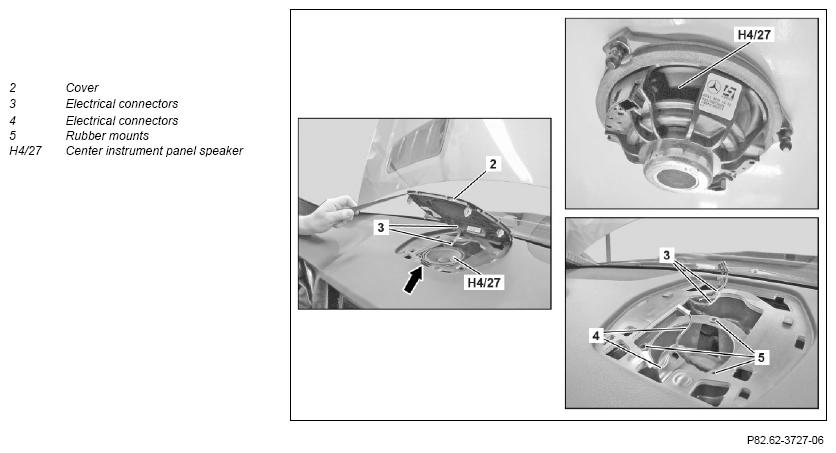

2	Carefully unclip cover (2) at rear edge (arrow) and pull upward out of installation opening	Insert cover (2) first with both front tabs, then clip into place at the rear of the clamp.
		Long wedge	Figure
3	Disconnect electrical connectors (3) at cover (2)
5	Pull center instrument panel speaker (H4/27) upward out of instrument panel	Ensure that the rubber mounts (5) are correctly seated in the instrument panel.
		Mounting wedge	Figure
6.1	Disconnect electrical connectors (4) from center instrument panel speaker (H4/27)	MODEL 166
6.2	Disconnect electrical connector from center instrument panel speaker (H4/27)	MODEL 292
7	Remove center instrument panel speaker (H4/27)
8	Install in the reverse order

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
