Remove/Install Telematics Services Communications Module Control Unit - AR82.85-P-0020GQC

MODEL 166.0, 292

with CODE 350 (Ecall emergency call system, Europe)

MODEL 166.0, 292

with CODE B54 (Live Traffic Information)

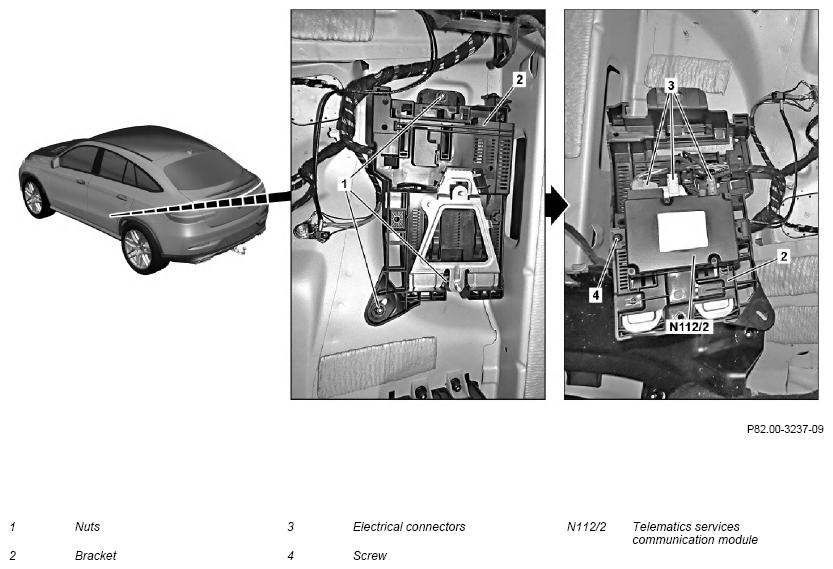

Shown on model 292

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform initial startup of telematics services communications module (N112/2)	When replacing telematics services communications module (N112/2).
			AD00.00-P-2000-04A
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Remove rear seat cushion	Model 292 with code 350 (Ecall emergency call system, Europe) Model 292 with code B54 (Live Traffic Information)	AR91.12-P-1021GQC
		Model 166.0 with code 350 (Ecall emergency call system, Europe) 60 % rear seat cushion Model 166.0 with code B54 (Live Traffic Information) 60 % rear seat cushion	AR91.12-P-1020GQ
		Model 166.0 with code 350 (Ecall emergency call system, Europe) 40 % rear seat cushion Model 166.0 with code B54 (Live Traffic Information) 40 % rear seat cushion	AR91.12-P-1020GQA
4	Remove folding rear backrest	Model 292 with code 350 (Ecall emergency call system, Europe) Model 292 with code B54 (Live Traffic Information)	AR91.12-P-1721GQC
		Model 166.0 with code 350 (Ecall emergency call system, Europe) 60% rear seat Model 166.0 with code B54 (Live Traffic Information) 60% rear seat	AR91.12-P-1620GQ
		Model 166.0 with code 350 (Ecall emergency call system, Europe) 40% rear seat Model 166.0 with code B54 (Live Traffic Information) 40% rear seat	AR91.12-P-1620GQA
5	Remove rear door sill moldings		AR68.30-P-4100GQ
6	Fold floor covering forward
7	Unscrew nuts (1)
8	Lift out bracket (2), turn over and place down
9	Detach electrical connections (3)
10	Unscrew bolt (4)
11	Remove telematics services communications module (N112/2) from guide
12	Install in the reverse order
