Remove/Install Taillamp - AR82.10-P-4905GQ

MODEL 166

Shown on model 166.004

Shown on vehicle with code Z04 (Light armoring)

Shown on vehicle with code Z04 (Light armoring)

Shown on vehicle with code Z04 (Light armoring)

	Remove/install
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit
2.1	Detach side panel in trunk in upper area	MODEL 166.0	AR68.30-P-4800GQ
2.2	Remove cover in side panel in trunk	MODEL 166.8	AR68.30-P-4800GQX

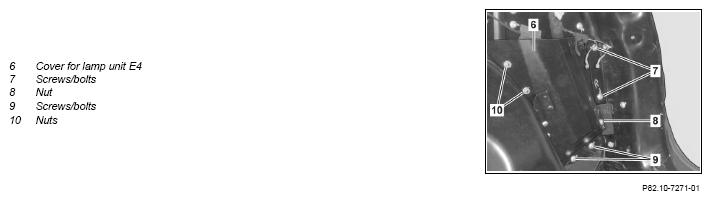

3	Remove screws/bolts (7, 9) and nuts (8, 10)	MODEL 166.0 with CODE Z04 (Light armoring) When removing right rear lamp unit (E4). Loctite 243	*BR00.45-Z-1066-01A
4	Remove lamp unit cover E4 (6)	MODEL 166.0 with CODE Z04 (Light armoring) When removing right rear lamp unit (E4).

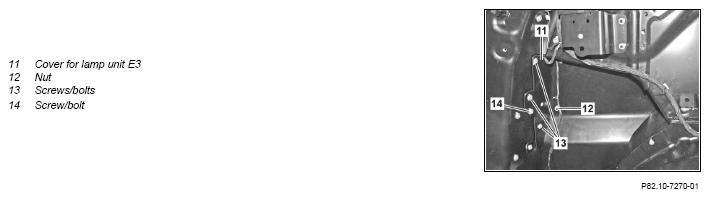

5	Remove screws/bolts (13, 14) and nut (12)	MODEL 166.0 with CODE Z04 (Light armoring) When removing left rear lamp unit (E3). Loctite 243	*BR00.45-Z-1066-01A
6	Remove lamp unit cover E3 (11)	MODEL 166.0 with CODE Z04 (Light armoring) When removing left rear lamp unit (E3).

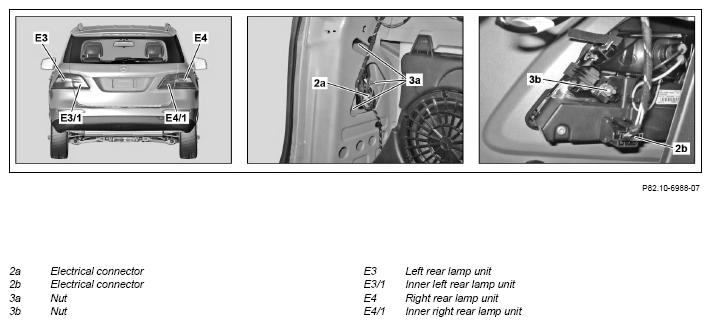

7	Release and disconnect electrical connector (2a)	When removing left rear lamp unit (E3) or right rear lamp unit (E4).
8	Unscrew nuts (3a)	When removing left rear lamp unit (E3) or right rear lamp unit (E4).
9	Remove left rear lamp unit (E3) or right rear lamp unit (E4) from rear fender
10	Remove center door lining from rear-end door	When removing inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1).	AR72.20-P-3520GQ

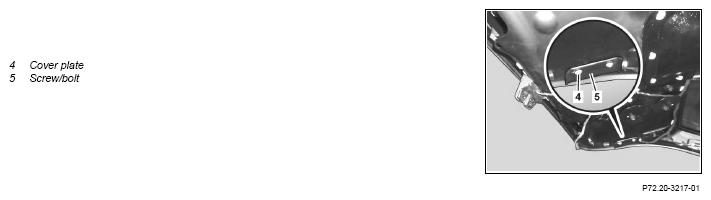

11	Remove screws/bolts (4) and remove cover (5)	MODEL 166.0 with CODE Z04 (Light armoring) When removing inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1).
12	Release and disconnect electrical connector (2b)	When removing inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1).
13	Loosen nut (3b)	When removing inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1).
14	Remove inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1) from liftgate
15	Install in the reverse order
