Remove/Install Satellite Radio Control Unit - AR82.60-P-7545GQ
MODEL 166, 292
with CODE 494 (US version)
with CODE 536 (SIRIUS satellite radio)
Shown on MODEL 166 with code 581 (Automatic air conditioning)
Shown on model 166
Shown on model 166
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and save basic data from Satellite Digital Audio Radio control unit (12) | Only when replacing the Satellite Digital Audio Radio control unit (12). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove left front seat | AR91.10-P-1000GQ | |
| 3 | Remove lower molding from left B-pillar | AR68.30-P-4700GQ | |
| 4 | Place rear floor covering to one side | ||
| 5 | Place front floor covering to one side | ||
| 6.1 | Unhook electrical line (4) from molded part | Model 166, 292 with code 494 (US version) with code 536 (SIRIUS satellite radio) except code 581 (Automatic air conditioning) |
|
| 6.2 | Unhook electrical line (4) from air duct (6) | Model 166, 292 with code 494 (US version) with code 536 (SIRIUS satellite radio) with code 581 (Automatic air conditioning) |
|
| 7.1 | Remove molded part | Model 166, 292 with code 494 (US version) with code 536 (SIRIUS satellite radio) except code 581 (Automatic air conditioning) |
|
| 7.2 | Remove air duct (6) | Model 166, 292 with code 494 (US version) with code 536 (SIRIUS satellite radio) with code 581 (Automatic air conditioning) |
|

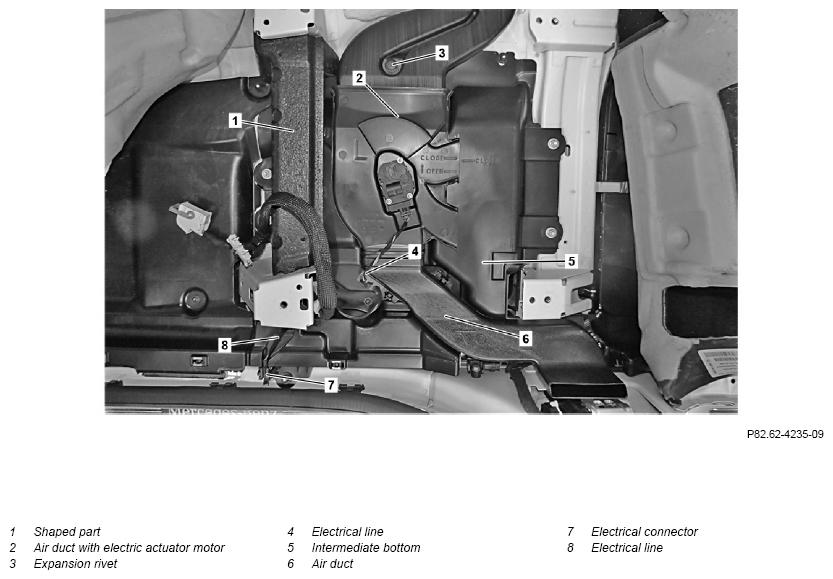

| 8 | Remove expansion rivets (3) | Fig 1 | |
| 9 | Remove air duct with electric actuator motor (2) and place to one side with connected electrical line (4) | ||
| 10 | Remove molded part (1) | ||
| 11 | Unhook electrical connector (7) and electrical line (8) from intermediate bottom (5) | ||

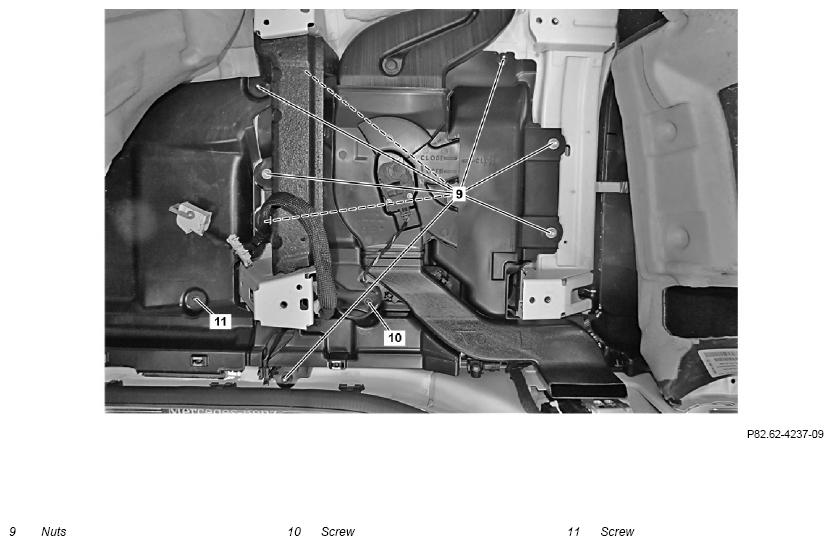

| 12 | Unscrew nuts (9) from intermediate bottom (5) | ||
| 13 | Remove screw/bolts (10, 11) | ||
| 14 | Remove intermediate bottom (5) | ||

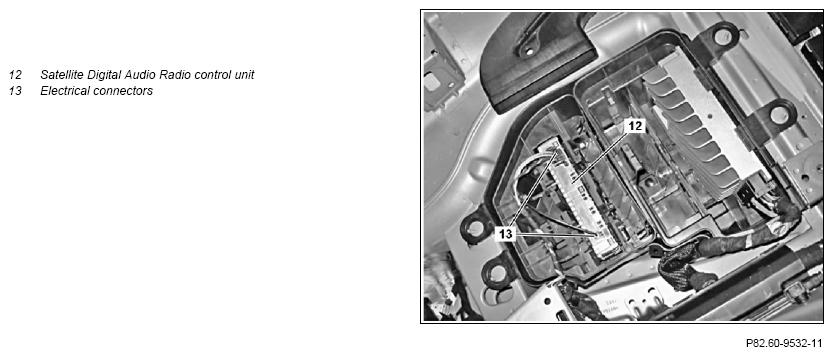

| 15 | Unclip Satellite Digital Audio Radio control unit (12) and remove from bracket | ||
| 16 | Disconnect electrical connections (13) | ||
| 17 | Install in the reverse order | ||
| Initial startup | |||
| 18 | Perform SCN coding of Satellite Digital Audio Radio control unit (12) | Only when replacing the Satellite Digital Audio Radio control unit (12). | |
| AR54.21-P-0015X | |||
| 19 | Transfer previously stored basic data to Satellite Digital Audio Radio control unit (12) | Only when replacing the Satellite Digital Audio Radio control unit (12). | |
| AD00.00-P-2000-04A | |||
| 20 | Perform initial startup of Satellite Digital Audio Radio control unit (12) | Only when replacing the Satellite Digital Audio Radio control unit (12). |
