Remove/Install Panic Alarm System Control Unit (GAS) - AR82.25-P-1206GQS
MODEL 166
with CODE Z04 (Light armoring)
MODEL 166
with CODE Z05 (B5 armoring on special protection version)
MODIFICATION NOTES
| 23.12.2015 | Reference link deleted | Operation step 3 |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Fold down rear bench seat | ||
| 3 | Fold back left floor covering | ||

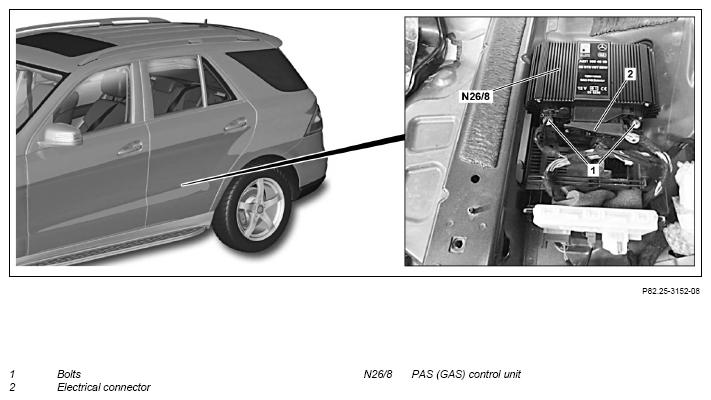

| 4 | Expose PAS [GAS] control unit (N26/8) | ||
| 5 | Disconnect electrical connection (2) | ||
| 6 | Remove bolts (1) | ||
| 7 | Remove PAS [GAS] control unit (N26/8) | ||
| 8 | Install in the reverse order |
