Remove/Install Mobile Phone Antenna Amplifier - AR82.62-P-0012GQB
MODEL 166.0, 292 as of model year 2016
with CODE 386 (Comfort telephony)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove left and right rear seat cushions | Model 166.0 as of model year 2016 with code 386 (Comfort telephony) 40 % rear seat cushion |
AR91.12-P-1020GQA |
| Model 166.0 as of model year 2016 with code 386 (Comfort telephony) 60 % rear seat cushion |
AR91.12-P-1020GQ | ||
| Model 292 as of model year 2016 with code 386 (Comfort telephony) |
AR91.12-P-1021GQC | ||
| 3 | Remove folding backrest at left and right rear | Model 166.0 as of model year 2016 with code 386 (Comfort telephony) 40% rear seat |
AR91.12-P-1620GQA |
| Model 166.0 as of model year 2016 with code 386 (Comfort telephony) 60% rear seat |
AR91.12-P-1620GQ | ||
| Model 292 as of model year 2016 with code 386 (Comfort telephony) |
AR91.12-P-1721GQC | ||
| 4 | Remove door sills in rear | AR68.30-P-4100GQ | |
| 5 | Fold floor covering forward until cellular telephone system antenna amplifier/compensator (A28/3) is accessible | ||
| 6 | Release and disconnect electrical connectors from cellular telephone system antenna amplifier/compensator (A28/3) | ||

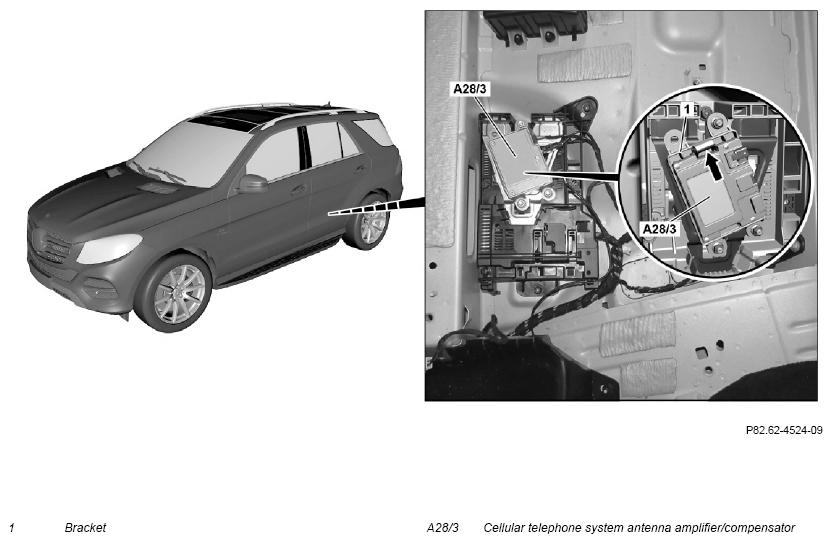

| 7 | Unclip cellular telephone system antenna amplifier/compensator (A28/3) using suitable tool from bracket (1) (arrow) and remove | Figure | |
| 8 | Install in the reverse order |
