Remove/Install Media Interface Control Unit - AR82.60-P-1030GQ

MODEL 166.0, 292

with CODE 518 (Media interface)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
2	Remove right front floor covering		AR68.20-P-2070GQ

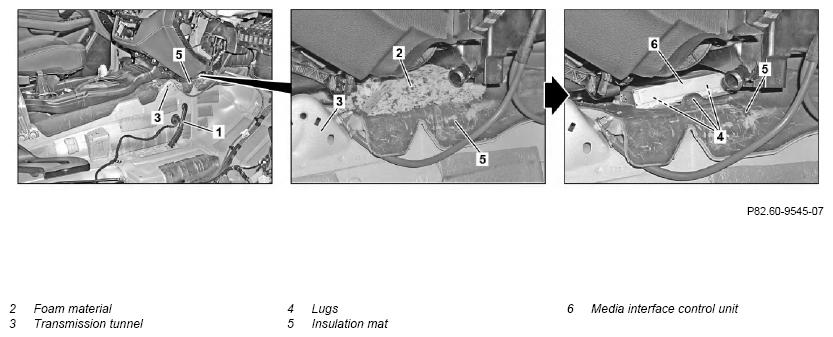

3	Remove foam material (2) from transmission tunnel (3)	Carefully remove foam material (2). Otherwise the foam material (2) may be damaged.
4	Remove media interface control unit (6)	Ensure that the media interface control unit (6) is placed between the tabs (4) of the insulation mat (5).
5	Disconnect electrical connectors from media interface control unit (6)
6	Install in the reverse order
