Remove/Install Hermes Control Unit - AR82.95-P-0019GQB

MODEL 166.0, 292

with CODE 360 (HERMES UMTS)

MODEL 166.0, 292

with CODE 362 (HERMES LTE)

Shown on model 292

Shown on MODEL 292

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform initial startup of the HERMES control unit (N112/9)	When replacing the HERMES control unit (N112/9).
			AD00.00-P-2000-04A
2	Remove rear seat cushion	Model 292 with code 360 (HERMES UMTS) Model 292 with code 362 (HERMES LTE)	AR91.12-P-1021GQC
		Model 166.0 with code 360 (HERMES UMTS) 40 % rear seat cushion Model 166.0 with code 362 (HERMES LTE) 40 % rear seat cushion	AR91.12-P-1020GQA
		Model 166.0 with code 360 (HERMES UMTS) 60 % rear seat cushion Model 166.0 with code 362 (HERMES LTE) 60 % rear seat cushion	AR91.12-P-1020GQ
3	Remove folding rear backrest	Model 292 with code 360 (HERMES UMTS) Model 292 with code 362 (HERMES LTE)	AR91.12-P-1721GQC
		Model 166.0 with code 360 (HERMES UMTS) 40% rear seat Model 166.0 with code 362 (HERMES LTE) 40% rear seat	AR91.12-P-1620GQA
		Model 166.0 with code 360 (HERMES UMTS) 60% rear seat Model 166.0 with code 362 (HERMES LTE) 60% rear seat	AR91.12-P-1620GQ
4	Remove door sills in rear		AR68.30-P-4100GQ
5	Fold floor covering forward

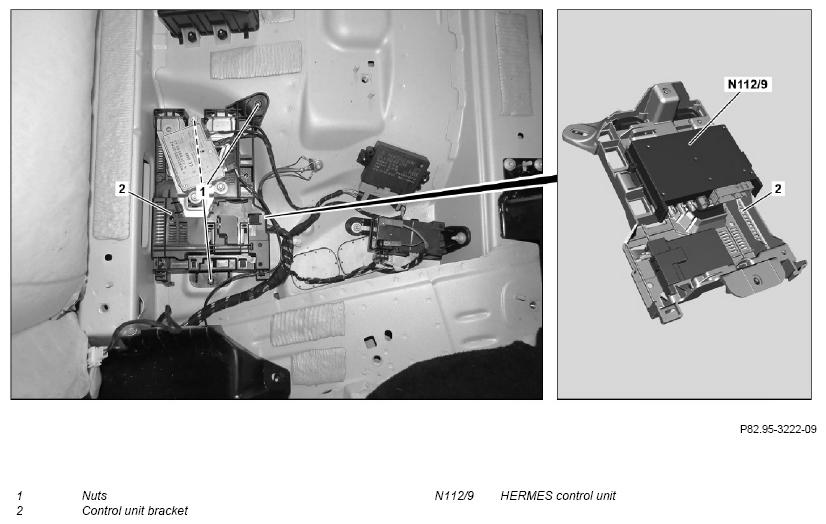

6	Unscrew nuts (1)

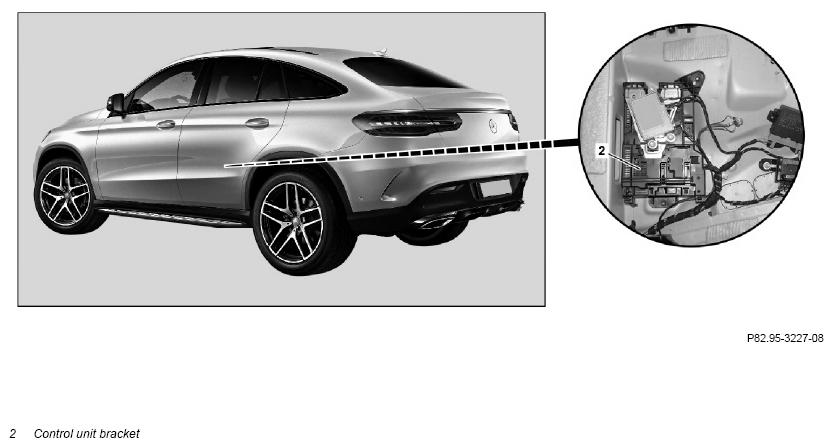

7	Remove and turn over control unit bracket (2) with HERMES control unit (N112/9) and connected electrical lines
8	Release and disconnect electrical connectors from HERMES control unit (N112/9)
9	Remove HERMES control unit (N112/9) from control unit bracket (2)
10	Install in the reverse order
