Remove/Install Hermes Antenna - AR82.95-P-0030GQA
MODEL 166
with CODE 360 (HERMES UMTS)
MODEL 166
with CODE 362 (HERMES LTE)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove door trim for liftgate center | AR72.20-P-3520GQ | |

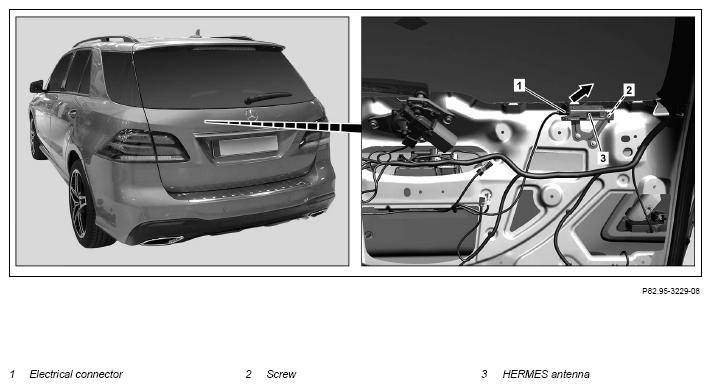

| 3 | Release and disconnect electrical connection (1) | ||
| 4 | Remove bolt (2) | ||
| 5 | Remove HERMES antenna (3) (arrow) | ||
| 6 | Install in the reverse order |
