Remove/Install Front Door Speakers In Mirror Triangle - AR82.62-P-7850GZ

MODEL 164, 166

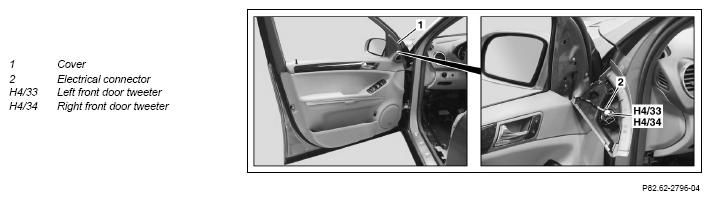

Shown on model 164.1

	Remove/install
1	Unclip cover (1)	Unclip cover (1) at top first. Mounting wedge	Figure
2	Disconnect electrical connector (2)
3	Unclip left front door tweeter (H4/33) or right front door tweeter (H4/34) from cover (1)	Catch tab at speaker determines the installation position.
4	Install in the reverse order
5	Perform function test

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
