Remove/Install Driving Lights Actuation Module - AR82.10-P-4650GQC

MODEL 166

as of model year 2016

with CODE 640 (High-performance LED)

MODEL 166

as of model year 2016

with CODE 641 (Headlamps, LED, dynamic, left-side traffic)

MODEL 166

as of model year 2016

with CODE 642 (Headlamps, LED, dynamic, right-side traffic)

MODEL 292

with CODE 640 (High-performance LED)

MODEL 292

with CODE 641 (Headlamps, LED, dynamic, left-side traffic)

MODEL 292

with CODE 642 (Headlamps, LED, dynamic, right-side traffic)

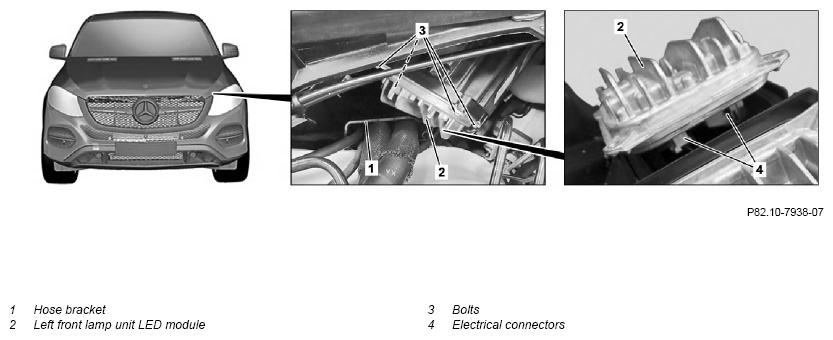

Shown on model 292

G11970135

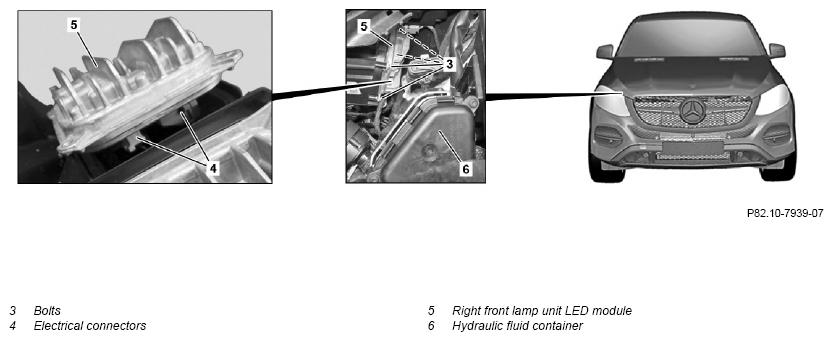

Shown on model 292

G11970136
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Connect diagnostic system and save basic data from left front lamp unit LED module (2) control unit or right front lamp unit LED module (5) control unit Only when replacing the left front lamp unit LED module (2) control unit or right front lamp unit LED module (5) control unit. AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS
2 Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
3 Open engine hood and raise to vertical position
4 Open hose bracket (1) and place hoses to one side When removing the left front lamp unit LED module (2).
5 Detach hydraulic fluid container (6) from bracket with lines connected and place to one side When removing the right front lamp unit LED module (5).
6 Remove screws/bolts (3) from left front lamp unit LED module (2) or right front lamp unit LED module (5)
7 Pull out left front lamp unit LED module (2) or right front lamp unit LED module (5) until electrical connectors (4) are accessible INSTALLATION IMPORTANT Ensure that seal on left front lamp unit LED module (2) or right front lamp unit LED module (5) is seated correctly.
8 Disconnect electrical connections (4)
9 Remove left front lamp unit LED module (2) or right front lamp unit LED module (5)
10 Note series of digits of LAM number Only when replacing the left front lamp unit LED module (2) control unit or right front lamp unit LED module (5) control unit.
AR82.10-P-4660GQC
11 Install in the reverse order
  Initial startup
12 Perform SCN coding of left front lamp unit LED module (2) control unit or right front lamp unit LED module (5) control unit Only when replacing the left front lamp unit LED module (2) control unit or right front lamp unit LED module (5) control unit.
AR54.21-P-0015X
13 Transfer previously stored basic data to left front lamp unit LED module (2) control unit or right front lamp unit LED module (5) control unit Only when replacing the left front lamp unit LED module (2) control unit or right front lamp unit LED module (5) control unit.
REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04A
14 Perform initial startup of left front lamp unit LED module (2) control unit or right front lamp unit LED module (5) control unit Only when replacing the left front lamp unit LED module (2) control unit or right front lamp unit LED module (5) control unit.
