Remove/Install DVD Player - AR82.60-P-7505GQ

MODEL 166, 292

with CODE 864 (Rear compartment entertainment package)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Connect diagnostic system and save basic data of DVD player (A40/4)	When replacing the DVD player (A40/4).
			AD00.00-P-2000-04A
2	Open DVD player (A40/4)

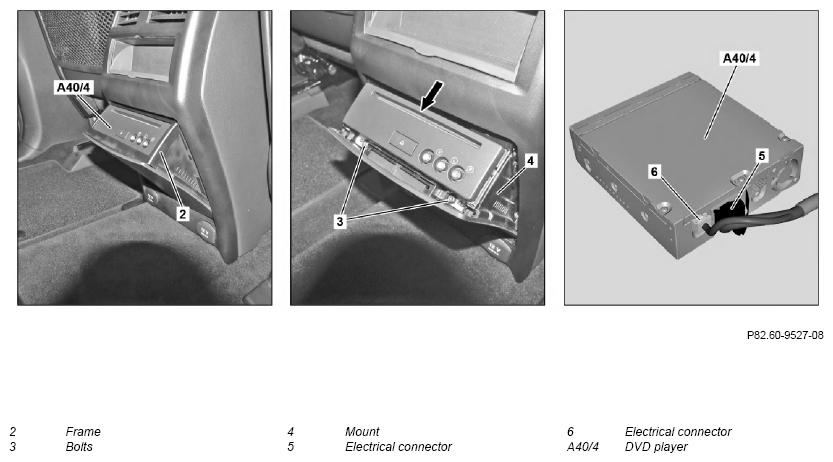

3	Unclip frame (2) from DVD player (A40/4)
4	Remove bolts (3)
5	Push mount (4) and DVD player (A40/4) beyond attachment point (arrow) and unclip mount (4) of DVD player (A40/4) from center console
6	Pull DVD player (A40/4) far enough out of mount (4) until the electrical connectors (5, 6) are accessible
7	Disconnect electrical connectors (5, 6) from DVD player (A40/4)
8	Remove DVD player (A40/4)
9	Install in the reverse order
	Initial startup
10	Run SCN coding on DVD player (A40/4)	When replacing the DVD player (A40/4).
			AR54.21-P-0015X
11	Transfer previously saved basic data to DVD player (A40/4)	When replacing the DVD player (A40/4).
			AD00.00-P-2000-04A
12	Perform initial startup of DVD player (A40/4)	When replacing the DVD player (A40/4).
