Remove/Install Control Unit For Tele Aid Emergency Call System - AR82.95-P-0005GQ
MODEL 166 with CODE (494) USA version
| Remove/install | |||
| 1 |
Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| 2 | Remove rear seat backrest | AR91.12-P-1620GQ | |
| 3 | Remove rear seat cushion | AR91.12-P-1020GQ | |
| 4 | Remove door sill molding | ||
| 5 | Lift floor covering | ||

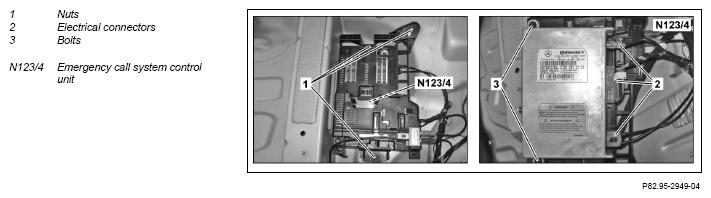

| 6 | Unscrew nuts (1) | ||
| 7 | Turn bracket with emergency call system control unit (N123/4) | ||
| 8 | Separate electrical connectors (2) | ||
| 9 | Remove bolt (3) | ||
| 10 | Remove emergency call system control unit (N123/4) | ||
| 11 | Install in the reverse order |
