Remove/Install Contact Plate For Cell Phone Holder (UPCI (UHI)) In The Armrest - AR82.70-P-8919GQ

MODEL 166, 292

with CODE 386 (Comfort telephony)

MODEL 166, 292

with CODE 518 (Media interface)

Shown on model 166

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

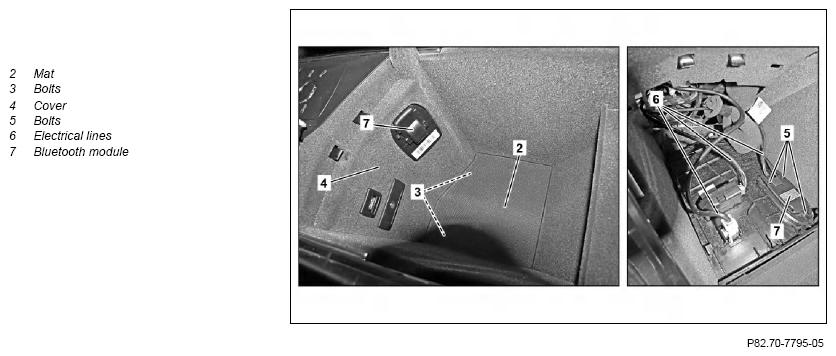

1	Fold up armrest at center console
2	Remove mat (2)
3	Remove bolts (3)
4	Pull cover (4) upward out of stowage box	Ensure electrical lines are routed correctly.
5	Disconnect electrical lines (6)	The number of electrical lines (6) varies depending on the vehicle equipment.
6	Remove bolts (5)
7	Take off Bluetooth module (7) from cover (4) and remove
8	Install in the reverse order
