Remove/Install Antenna Cover - AR82.70-P-8952EW

MODEL 117.3

MODEL 166, 172.4, 218

MODEL 212.0/2

as of model year 2011

MODEL 222

MODEL 242, 246

with CODE 362 (HERMES LTE)

with CODE 460 (Canada version)

MODEL 242, 246

with CODE 362 (HERMES LTE)

with CODE 494 (US version)

MODEL 242, 246

with CODE 536 (SIRIUS satellite radio)

MODEL 292

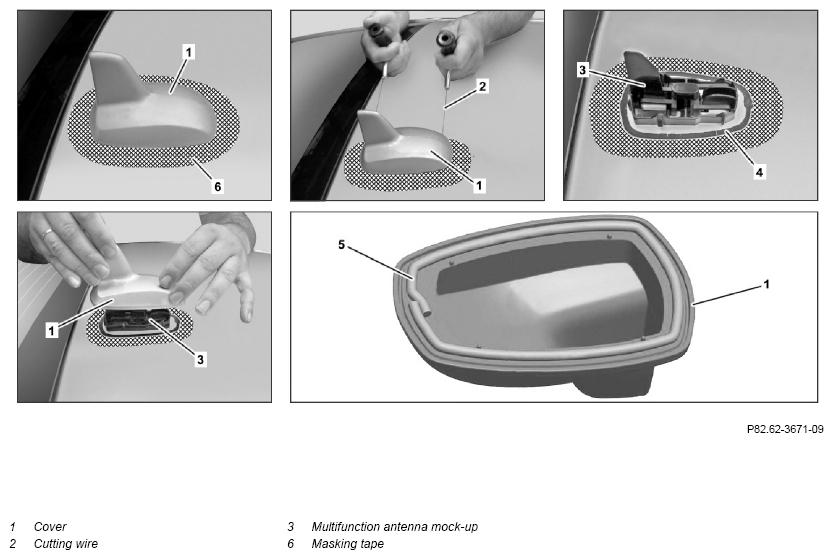

Shown on MODEL 218 with multifunction antenna mock-up

	Remove
1	1KP repare-component adhesive cartridge		AR67.10-P-1000-12SX
		Adhesive parts kit (with heptane cleaner)	*BR00.45-Z-1142-02A
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Adapter	Fig 1
2	Mask off body with masking tape (6) in area of cover (1)
	Risk of injury  caused by tearing of the cutting wire	Wear safety glasses.	AS88.00-Z-0001-01A
3	Cut out cover (1) with cutting wire (2)		AR82.70-P-8952-02EW
		The cover (1) is destroyed when cut out and it has to be replaced.
	Install
4	Prepare body for installation		AR82.70-P-8952-01EW
		Primer stick	*BR00.45-Z-1012-07A
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
5	Apply adhesive material to cover (1)		AR82.70-P-8952-03EW
		The cover (1) must be mounted onto the body within a period of 5 minutes after applying the adhesive material. Otherwise the adhesive force of the glue starts to decrease.
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Adapter	Fig 1
6	Position cover (1) above multifunction antenna mock-up (3) and press onto body, applying slight pressure up to contact surface	The cover (1) is aligned to the multifunction antenna mock-up (3). The manufacturer's specifications with regard to adhesive material curing times must be noted.

Number	Designation	Order number
BR00.45-Z-1012-07A	Primer stick	A 000 986 27 50
BR00.45-Z-1135-02A	Repair kit for installing windshields, 1-component adhesive	A 221 670 81 01
BR00.45-Z-1142-02A	Adhesive parts kit (with heptane cleaner)	A 451 989 01 71
