Remove/Install Amplifier For Sound System - AR82.62-P-7723GQA
MODEL 166, 292
with CODE 810 (Sound system)
except CODE 811 (Advanced sound system)
Shown on MODEL 166 with code 581 (Automatic air conditioning)
Shown on model 166
Shown on model 166
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Connect diagnostic system and save basic data for sound system amplifier control unit (12) | When replacing the sound system amplifier control unit (12). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove left front seat | AR91.10-P-1000GQ | |
| 3 | Remove lower molding from left B-pillar | AR68.30-P-4700GQ | |
| 4 | Place rear floor covering to one side | ||
| 5 | Place front floor covering to one side | ||
| 6.1 | Unhook electrical line (4) from molded part | Model 166, 292 with code 810 (Sound system) except code 581 (Automatic air conditioning) except code 811 (Advanced sound system) |
|
| 6.2 | Unhook electrical line (4) from air duct (6) | Model 166, 292 with code 581 (Automatic air conditioning) with code 810 (Sound system) except code 811 (Advanced sound system) |
|
| 7.1 | Remove molded part | Model 166, 292 with code 810 (Sound system) except code 581 (Automatic air conditioning) except code 811 (Advanced sound system) |
|
| 7.2 | Remove air duct (6) | Model 166, 292 with code 581 (Automatic air conditioning) with code 810 (Sound system) except code 811 (Advanced sound system) |
|

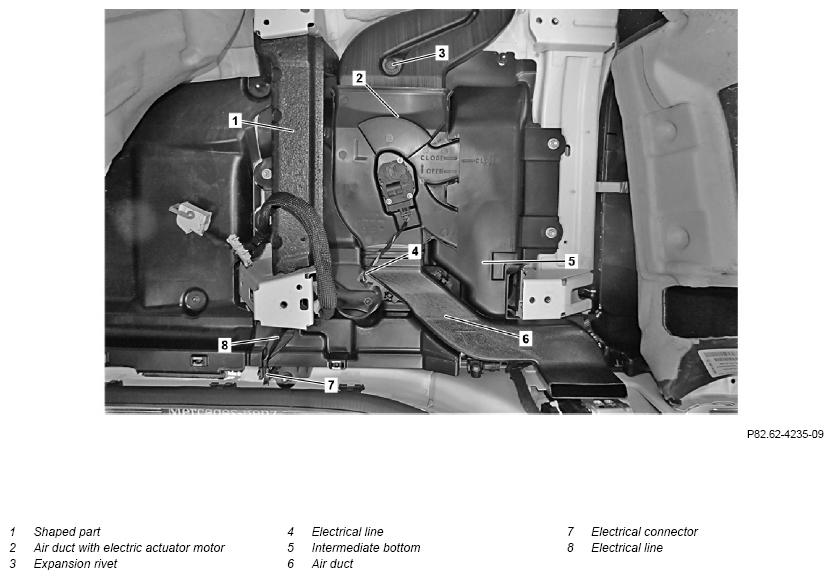

| 8 | Remove expansion rivets (3) | Figure | |
| 9 | Remove air duct with electric actuator motor (2) and place to one side with connected electrical line (4) | ||
| 10 | Remove molded part (1) | ||
| 11 | Unhook electrical connector (7) and electrical line (8) from intermediate bottom (5) | ||

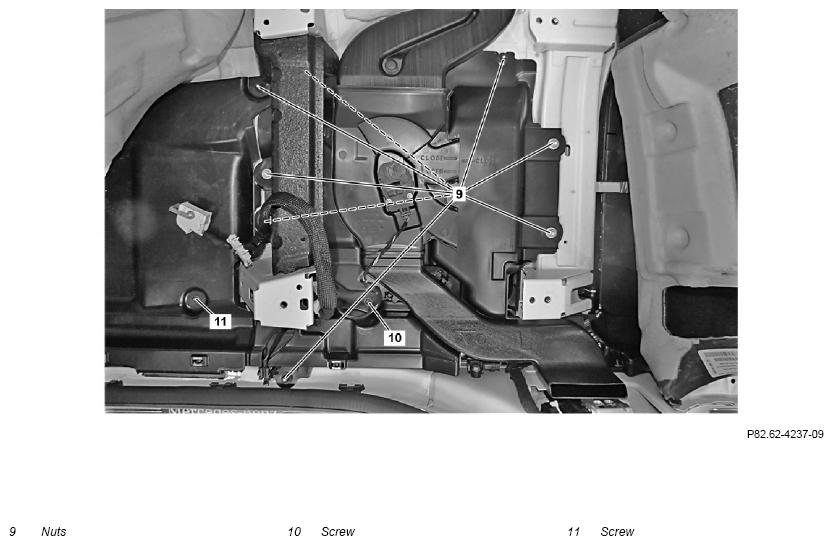

| 12 | Unscrew nuts (9) from intermediate bottom (5) | ||
| 13 | Remove screw/bolts (10, 11) | ||
| 14 | Remove intermediate bottom (5) | ||

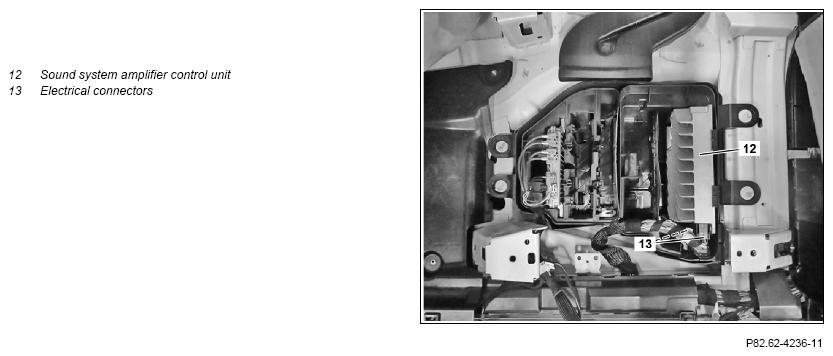

| 15 | Unclip sound system amplifier control unit (12) and remove from bracket | ||
| 16 | Disconnect electrical connections (13) | ||
| 17 | Install in the reverse order | ||
| Initial startup | |||
| 18 | Run SCN coding of sound system amplifier control unit (12) | Only when replacing sound system amplifier control unit (12). | |
| AR54.21-P-0015X | |||
| 19 | Transfer previously stored basic data to sound system amplifier control unit (12) | Only when replacing sound system amplifier control unit (12). | |
| AD00.00-P-2000-04A | |||
| 20 | Perform initial startup of sound system amplifier control unit (12) | Only when replacing sound system amplifier control unit (12). |
