Check Wiper Arms And Adjust - AR82.30-P-6000GZ

MODEL 164 up to 8/24/11, 166 up to 8/24/11

MODEL 222

except code 874 (MAGIC VISION CONTROL, heated)

Shown on model 164

Shown on model 164

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Check

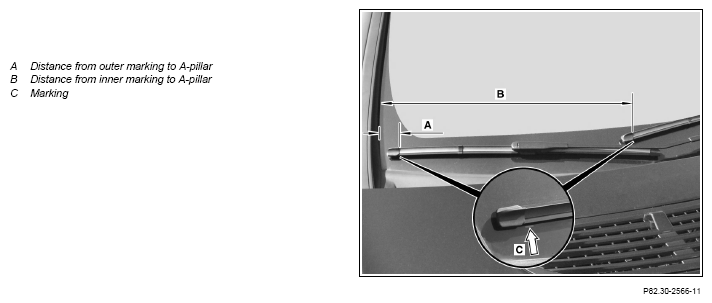

1	Check position of driver-side wiper arm (1) in parked position using the markings (C) (arrow) at the windshield	The wiper-blade end must lie on the marking (C) (arrow) and may not be offset upwards or downwards by more than 10 mm.
		Model 164 up to 8/24/11, 166 up to 8/24/11 The distance between the outer marking and the A-pillar (A) is approx. 60 mm. A huge deviation can be caused by a damaged wiper linkage, incorrect positioning of the wiper arm (1) on the linkage pins or a bent wiper arm (1). If damage is present ↓ Replace windshield wiper system
		Model 164 up to 8/24/11, 166 up to 8/24/11	AR82.30-P-6400GZ
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Replace driver side wiper arm (1) or passenger-side wiper arm (2)	AR82.30-P-6400LF
		Model 164 up to 8/24/11, 166 up to 8/24/11	AR82.30-P-6100GZ
		Model 222 except code 874 (MAGIC VISION CONTROL heated)	AR82.30-P-6100LF

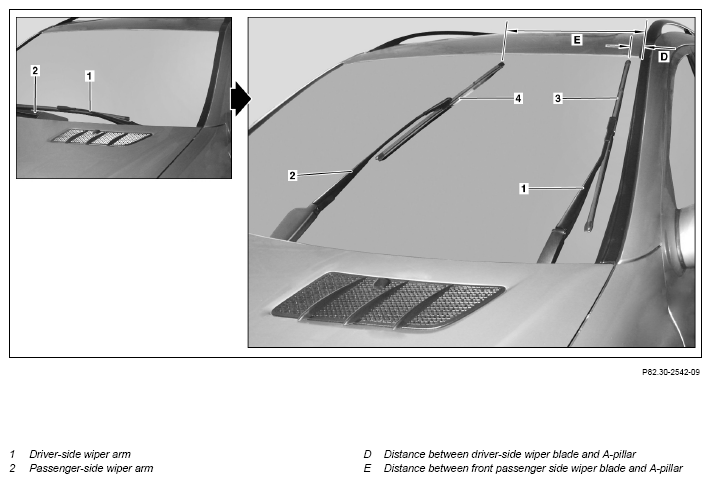

2	Position driver-side wiper arm (1) manually in the reversing position	Model 164 up to 8/24/11, 166 up to 8/24/11 The reversing position of the driver-side wiper arm (1) corresponds to the distance between driver-side wiper blade and A-pillar (D) of approx. 30 mm. Model 222 except code 874 (MAGIC VISION CONTROL, heated) The reversing position of the driver-side wiper arm (1) corresponds to the distance between driver-side wiper blade and A-pillar (D) of approx. 45 mm.
3	Remove driver side wiper blade	When working on raised driver-side wiper arm (1), ensure that this does not fall onto the windshield. Otherwise windshield will be damaged. Driver-side wiper arm (1) must not be moved.
4	Check position of passenger-side wiper arm (2) in parked position using the markings (C) (arrow) at the windshield	The wiper-blade end must lie on the marking (C) (arrow) and may not be offset upwards or downwards by more than 10 mm. The distance between the inner marking and the A-pillar (B) is approx. 510 mm. A huge deviation can be caused by a damaged wiper linkage, incorrect positioning of the wiper arm (2) on the linkage pins or a bent wiper arm (2). If damage is present ↓ Replace windshield wiper system
		Model 164 up to 8/24/11, 166 up to 8/24/11	AR82.30-P-6400GZ
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Replace passenger-side wiper arm (2)	AR82.30-P-6400LF
		Model 164 up to 8/24/11, 166 up to 8/24/11	AR82.30-P-6100GZ
		Model 222 except code 874 (MAGIC VISION CONTROL heated)	AR82.30-P-6100LF
5	Position passenger-side wiper arm (2) manually in the reversing position	The reversing position of the passenger- side wiper arm (2) corresponds to the distance between passenger-side wiper blade to A- pillar (E) of approx. 460 mm. The distance between the passenger-side wiper blade and the A-pillar (E) results from the specified distance between the driver-side wiper blade and the A-pillar (D).
6	Remove passenger side wiper blade	When working on raised passenger side wiper arm (2), ensure that this does not fall onto the windshield. Otherwise windshield will be damaged. Passenger-side wiper arm (2) must not be moved.
	Clean
7	Clean wiper blade fixtures on driver-side wiper arm (1) and passenger-side wiper arm (2) using a clean cloth
8	Cover driver-side wiper arm (1) using suitable aids (scratch protection)
9	Measure angle of incidence of wiper arm (1) to windshield, note this down and compare test value with adjustment value		AR82.30-P-6000-01GZ
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
		When changing from reversing position to parked position, make sure that driver-side wiper arm (1) does not make direct contact with windshield. Otherwise windshield will become scratched.
		Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01J
		Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of driver-side wiper arm in reversing position	*BE82.30-P-1001-01J
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Angle of incidence of driver-side wiper arm in reversing position	*BE82.30-P-1001-01M
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Adjusting tool set	Fig 3
		Adapter	Fig 1
10	Cover passenger-side wiper arm (2) using suitable aids (scratch protection)
11	Measure angle of incidence of wiper arm (2) to windshield, note this down and compare test value with adjustment value		AR82.30-P-6000-01GZ
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
		When changing from reversing position to parked position, make sure that passenger- side wiper arm (2) does not make direct contact with windshield. Otherwise windshield will become scratched.
		Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01J
		Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of passenger-side wiper arm in reversing position	*BE82.30-P-1002-01J
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Angle of incidence of passenger-side wiper arm in reversing position	*BE82.30-P-1002-01M
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
			Fig 3
		Adjusting tool set Adapter	Fig 1
	Adjust
12.1	Adjust angle of incidence of wiper arm (1) in parked position	If the test values deviate from the tolerance range in the reversing position or in the parked and reversing position.	AR82.30-P-6100-01GZ
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
		Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01J
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Adjusting tool set	Fig 3
		Adapter	Fig 1
12.2	Adjust windshield wiper system	In the event that the check values of the wiper arm (1) deviate from the tolerance range in parked position.
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
		Model 164 up to 8/24/11, 166 up to 8/24/11	AR82.30-P-6400-01GZ
		Model 222 except code 874 (MAGIC VISION CONTROL heated)	AR82.30-P-6400-01CW
		Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01J
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Screw/bolt, windshield wiper system to body	*BA82.30-P-1001-01P
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Extraction hook	Fig 2
		Adjusting tool set	Fig 3
		Adapter	Fig 1
13.1	Adjust angle of incidence of wiper arm (2) in parked position	If the test values deviate from the tolerance range in the reversing position or in the parked and reversing position.	AR82.30-P-6100-01GZ
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01J
		Adjusting tool set	Fig 3
		Adapter	Fig 1
13.2	Adjust windshield wiper system	In the event that the check values of the wiper arm (2) deviate from the tolerance range in park position.
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
		Model 164 up to 8/24/11, 166 up to 8/24/11	AR82.30-P-6400-01GZ
		Model 222 except code 874 (MAGIC VISION CONTROL heated)	AR82.30-P-6400-01CW
		Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01J
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Screw/bolt, windshield wiper system to body	*BA82.30-P-1001-01P
		Model 222 except code 874 (MAGIC VISION CONTROL heated) Extraction hook	Fig 2
		Adjusting tool set	Fig 3
		Adapter	Fig 1
14	Install wiper blades

Fig 1: Identifying Adapter (211 589 05 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adjusting Tool Set (211 589 02 21 00)

Courtesy of MERCEDES-BENZ USA
