Check Setting Of High Beam - AP82.10-P-8260-02F

MODEL 166 as of model year 2016

MODEL 292

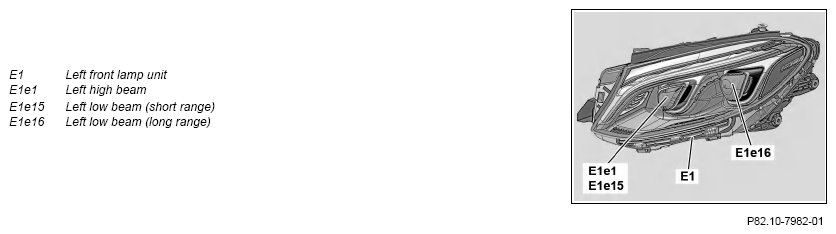

Shown: model 292 with ECE version of headlamp

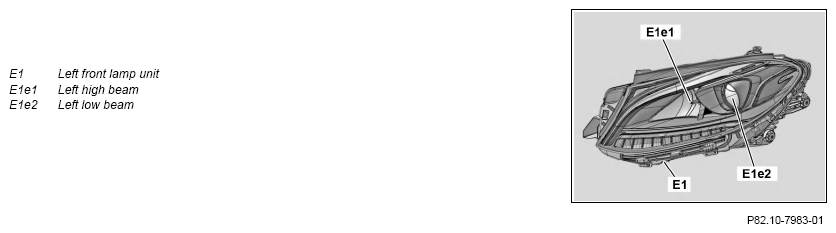

Shown: model 292 with halogen headlamp

Shown: model 292 with dynamic LED headlamp

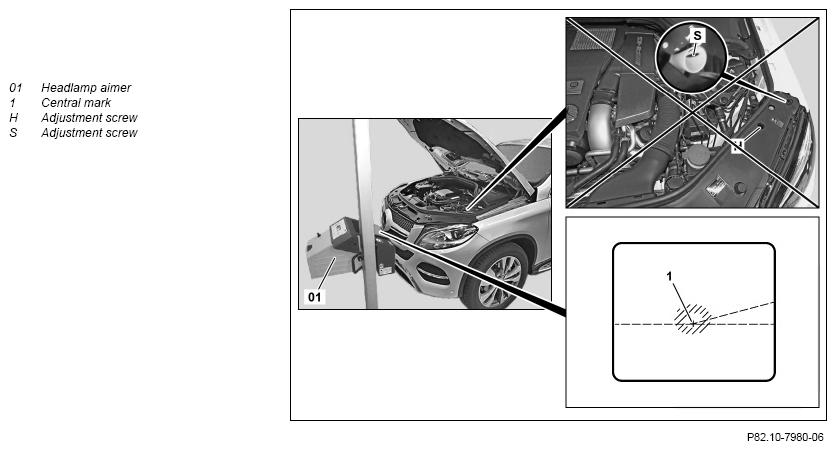

1. Align headlamp aimer (01) parallel to vehicle, level with left high beam (E1e1) or right high beam.
2. Check setting of high beam.

Corrections must not be made to the adjustment screws (H, S) on the headlamp.

Otherwise, the previously adjusted low beams will be mis-adjusted.

The center of the light beam must be positioned on the central mark (1) in the headlamp aimer (01).

If headlamp adjustment is not correct.

Rectify problem subject to separate repair order.
