Replacing Power Seat Control Module With Memory - AR91.29-P-0002GQ
MODEL 166, 292
Shown on model 166.057
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |

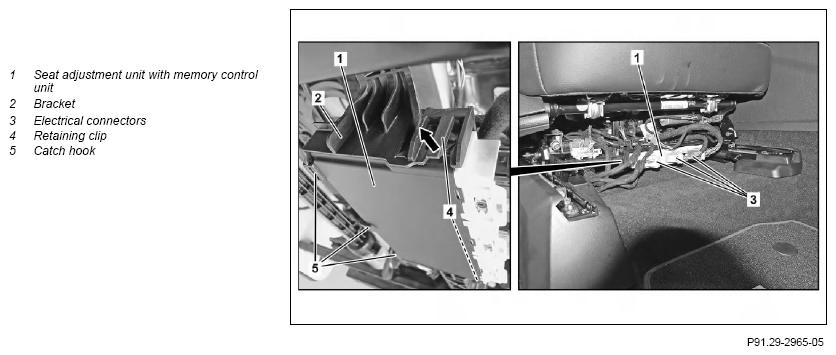

Connect diagnostic system and save basic data from seat adjustment unit with memory control unit (1) | Only when replacing the seat adjustment unit with memory control unit (1). | AD00.00-P-2000-04A |
| 2 | Move front seat upward and toward rear | ||
| 3 | Disconnect electrical connectors (3) on seat adjustment unit with memory control unit (1) | ||
| 4 | Press retaining clips (4) outward (arrow) | ||
| 5 | Unclip seat adjustment unit with memory control unit (1) from bracket (2) | ||
| 6 | Remove seat adjustment unit with memory control unit (1) | ||
| 7 | Install in the reverse order | ||
| Initial startup | |||
| 8 | Perform SCN coding of seat adjustment unit with memory control unit (1) | Only when replacing the seat adjustment unit with memory control unit (1). | AR54.21-P-0015X |
| 9 | Transfer previously saved basic data on seat adjustment unit with memory control unit (1) | Only when replacing the seat adjustment unit with memory control unit (1). | |
| AD00.00-P-2000-04A | |||
| 10 | Carry out initial startup of seat adjustment unit with memory control unit (1) | Only when replacing the seat adjustment unit with memory control unit (1). |
