Remove/Install The Seat Ventilation Motors On The Front Seat Backrest - AR91.30-P-1900GZG
MODEL 166, 292
with CODE 401 (Climatised front seats)
MODEL 463.202/222/236/237/270/271/303/340/341
up to model year 2010
with CODE S50 (Seat ventilation for driver and co-driver seats)
Shown on model 463.202
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

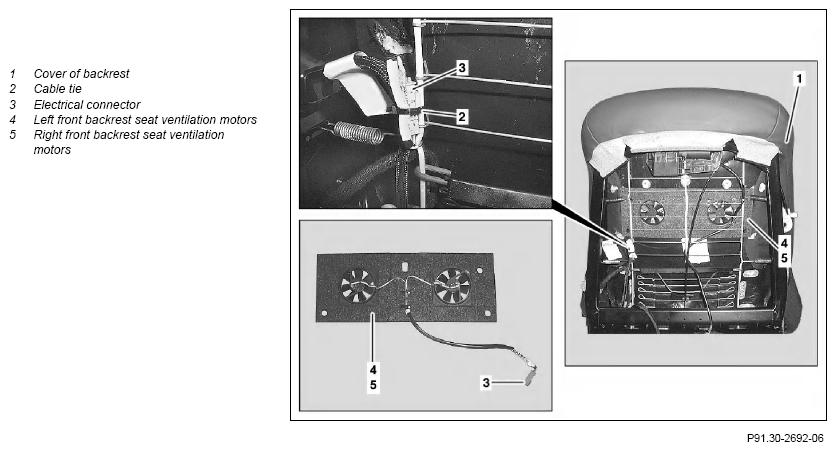

| 1.1 | Detach cover of backrest (1) far enough from left or right front seat until seat ventilation motors for left front backrest (4) or seat ventilation motors for right front backrest (5) are accessible | Model 463.202/222/236/237/270/271/303/340/341 up to model year 2010 with code S50 (Seat ventilation for driver and co-driver seats) |
AR91.18-P-1820GN |
| 1.2 | Remove seat-back lining from backrest | Model 166, 292 with code 401 (Climatised front seats) |
AR91.10-P-1910GQ |
| 2 | Remove cable ties (2) | Model 166 with code 401 (Climatised front seats) Model 463.202/222/236/237/270/271/303/340/341 up to model year 2010 with code S50 (Seat ventilation for driver and co-driver seats) |
|
| 3 | Disconnect electrical connector (3) | ||
| 4 | Thread out electrical wiring harness of seat ventilation motors for left front backrest (4) or seat ventilation motors for right front backrest (5) | ||
| 5 | Remove seat ventilation motors for left front backrest (4) or seat ventilation motors for right front backrest (5) | Model 166 up to model year 2016 with code 401 (Climatised front seats) Model 463.202/222/236/237/270/271/303/340/341 up to model year 2010 with code S50 (Seat ventilation for driver and co-driver seats) |
|
| 6 | Pull back lumbar support unit slightly and remove seat ventilation motors for left front backrest (4) or seat ventilation motors for right front backrest (5) | Model 166 as of model year 2016 with code 401 (Climatised front seats) Model 292 with code 401 (Climatised front seats) |
|
| 7 | Install in the reverse order |
