Remove/Install Sensor For Sidebag/Windowbag - AR91.60-P-0730GQ

MODEL 166, 292

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003GZ
2	Move seat forward
3	Remove trim at left or right bottom from B-pillar		AR68.30-P-4700GQ

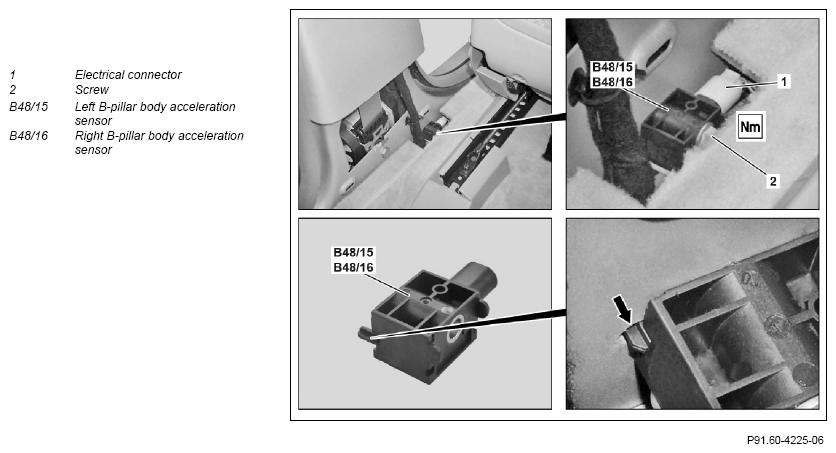

4	Disconnect electrical connector (1)
5	Push floor covering to one side and remove screw/bolt (2)	Screw/bolt, frontal acceleration sensor to B-pillar	*BA91.60-P-1022-01H
		Mounting wedge	Figure
6	Remove left B-pillar body acceleration sensor (B48/15) or right B-pillar body acceleration sensor (B48/16)	Insert journal of left B-pillar body acceleration sensor (B48/15) or right B-pillar body acceleration sensor (B48/16) into hole of longitudinal member inside (arrow) for positioning.
7	Install in the reverse order

AIRBAG

Number	Designation		Model 166	Model 292
BA91.60-P-1022-01H	Screw/bolt, frontal acceleration sensor to B-pillar	Nm	9	9

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
