Remove/Install Rear Seat Belt Buckle - AR91.40-P-1516GQA

MODEL 166

Center and outside 60%

Illustrated on model 166.0

	Remove/install
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
1	Fold up 60% rear seat cushion
2	Remove inner lining at 60% rear seat	MODEL 166.8 When removing center 60% seat belt buckle (3)	AR91.12-P-0100GQ

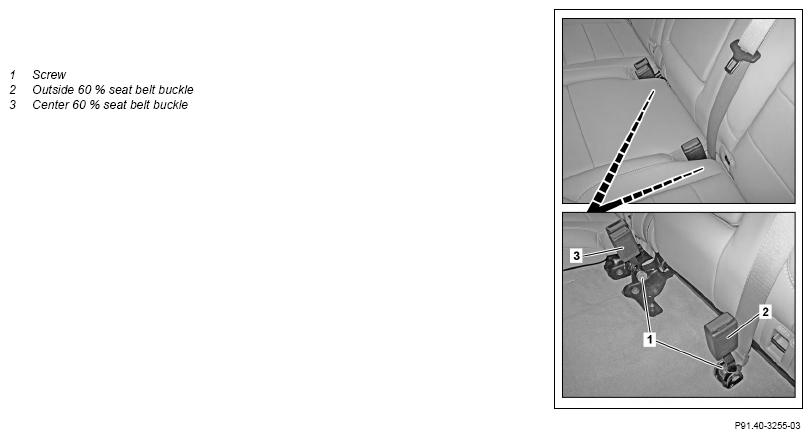

3	Remove screw/bolt (1) for outside 60% seat belt buckle (2) or center 60% seat belt buckle (3)	Installation:  Ensure correct installation position of spring.
		Check outside 60% seat belt buckle (2) or center 60% seat belt buckle (3) for damage.
		Bolt, belt end fitting/seat belt lock, rear seat on body/seat	*BA91.40-P-1007-01R
4	Disconnect electrical connector for outside 60 % seat belt buckle switch (2) or for center 60 % seat belt buckle switch (3)	When removing outside 60% seat belt buckle (2) or center 60% seat belt buckle (3) Pay attention to correct routing and attachment of electrical lines.
5	Remove outside 60% seat belt buckle (2) or center 60% seat belt buckle (3)
6	Install in the reverse order
