Remove/Install Rear Seat Belt Buckle - AR91.40-P-1516GQ

MODEL 166

40% seat

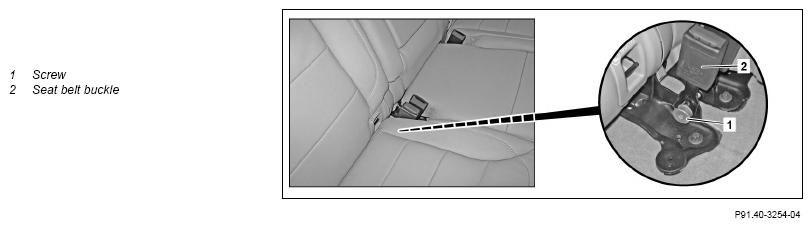

Illustrated on model 166.0

	Remove/install
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
1	Fold up 40% rear seat cushion
2	Remove inner lining from 40% rear seat	MODEL 166.8	AR91.12-P-0100GQ
3	Disconnect electrical connector for seat belt buckle switch (2)	Pay attention to correct routing and attachment of electrical lines.
4	Remove bolt (1)	Check seat belt buckle (2) for damage. Installation:  Ensure correct installation position of spring. Bolt, belt end fitting/seat belt lock, rear seat on body/seat	*BA91.40-P-1007-01R
5	Remove seat belt buckle (2)
6	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		MODEL 166
BA91.40-P-1007-01R	Bolt, belt end fitting/seat belt lock, rear seat on body/seat	Nm	35
