Remove/Install Rear Backrest Trim - AR91.12-P-1134GQA

MODEL 166

60% rear seat

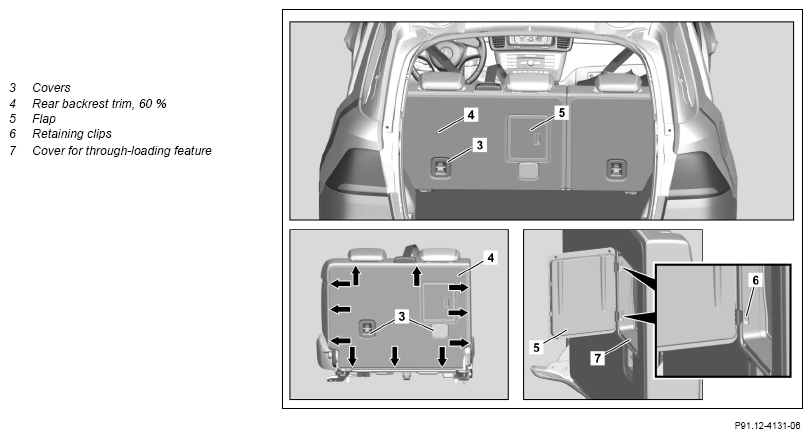

Shown on model 166 with code 282 (Through-loading feature)

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Remove/install
1	Fold 60% rear backrest forward
2	Unclip covers (3) of 60% rear backrest	Long wedge	Fig 2
3	Open flap (5) on cover of through-loading feature (7)	Model 166 with code 282 (Through-loading feature) 60% rear seat
4	Unclip retaining clips (6) and remove cover of through-loading feature (7) from guide	Model 166 with code 282 (Through-loading feature) 60% rear seat Mounting wedge	Fig 1
5	Pull out rear backrest cover side lip (arrows) on back of the rear backrest trim, 60%	Long wedge	Fig 2
6	Remove rear backrest trim, 60% (4)
7	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
