Remove/Install Overpressure Reservoir For Multicontour Backrest - AR91.25-P-1650GQ
MODEL 166 up to model year 2016
with CODE 399 (Multicontour front seats with massage function)
Shown on model 166.8
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove left side trim in trunk | Model 166.0 up to model year 2016 with code 399 (Multicontour front seats with massage function) |
AR68.30-P-4800GQ |
| Model 166.8 up to model year 2016 with code 399 (Multicontour front seats with massage function) |
AR68.30-P-4800GQX | ||

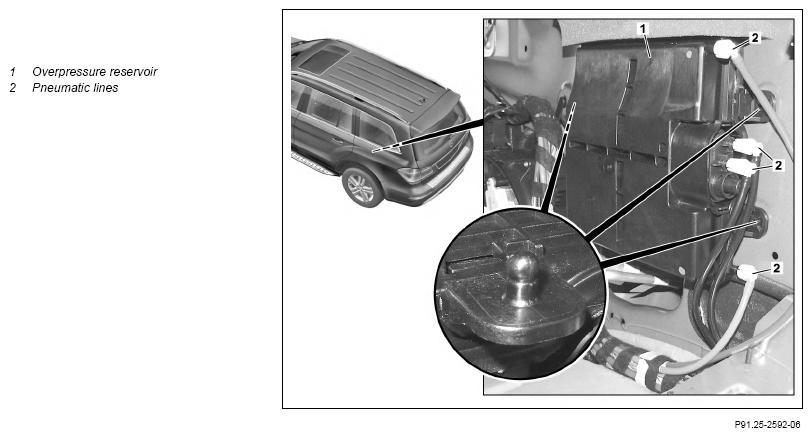

| 3 | Unclip overpressure reservoir (1) and place to one side with pneumatic lines (2) connected | ||
| 4 | Mark pneumatic lines (2) and disconnect from overpressure reservoir (1) | Fig 1 | |
| 5 | Install in the reverse order |
