Remove/Install Front Seat Backrest - AR91.10-P-1060GQ
MODEL 166, 292

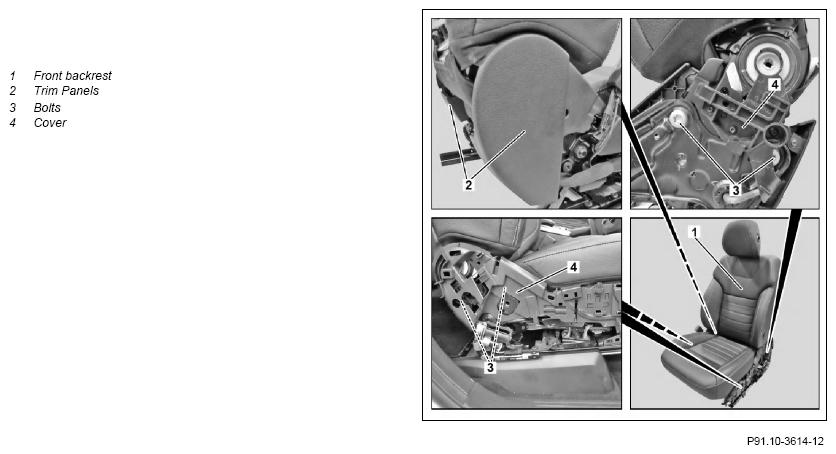

Shown on model 166

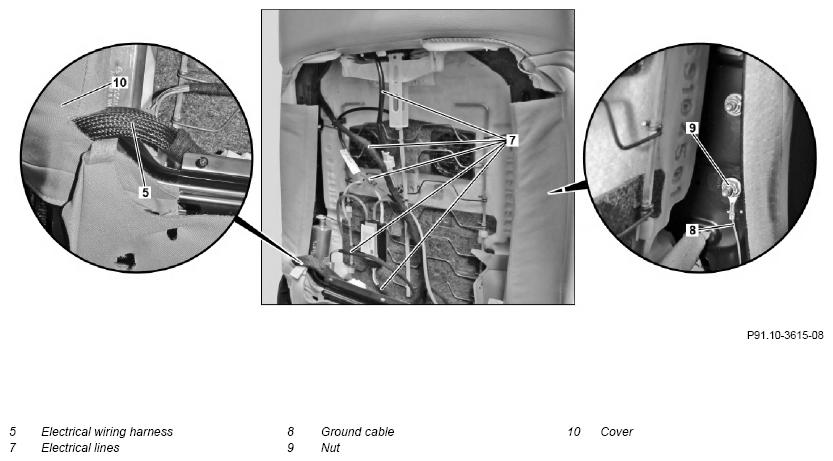

Shown on model 166

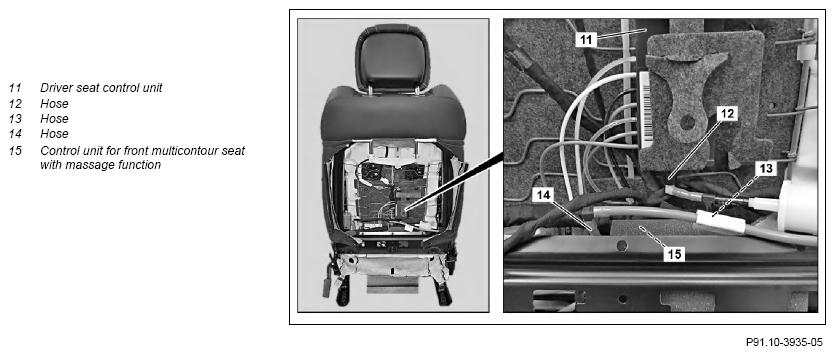

Shown on model 292 with code 399 (Front multicontour seats with massage function)
| Remove/install | |||
| 1 | Remove front seat | AR91.10-P-1000GQ | |
| 2 | Remove seat back lining | AR91.10-P-1910GQ | |
| 3 | Remove paneling (2) and covers (4) | AR91.10-P-1200GQ | |
| 4 | unscrew nut (9) | *BA91.60-P-1019-01H | |
| 5 | Detach ground line (8) from backrest at front (1) | ||
| 6 | Detach driver seat control unit (11) from bracket and pull forward slightly | Model 166, 292 with code 399 (Multicontour front seats with massage function) |
|
| 7 | Detach lower hose (12) from driver seat control unit (11) | Model 166, 292 with code 399 (Multicontour front seats with massage function) |
|
| 8 | Detach hose (13) from control unit for front multicontour seat with massage function (15) | Model 166, 292 with code 399 (Multicontour front seats with massage function) |
|
| 9 | Pull control unit for front multicontour seat with massage function (15) slightly upward and detach hose (14) | Model 166, 292 with code 399 (Multicontour front seats with massage function) |
|
| 10 | Disconnect electrical connector from sidebag and electrical lines (7) from front backrest (1) and remove | ||
| 11 | Unclip electrical wiring harness (5) from front backrest (1) | ||
| 12 | Remove cover (10) in area of electrical wiring harness (5) and place electrical wiring harness (5) to one side | ||
| 13 | Remove bolts (3) | *BA91.10-P-1002-01L | |
| 14 | Remove front backrest (1) | ||
| 15 | Install in the reverse order |
FRONT SEATS
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA91.10-P-1002-01L | Screw, backrest to seat frame | Nm | 40 | 40 |
AIRBAG
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA91.60-P-1019-01H | Nut, sidebag to backrest frame | Nm | 7 | 7 |
